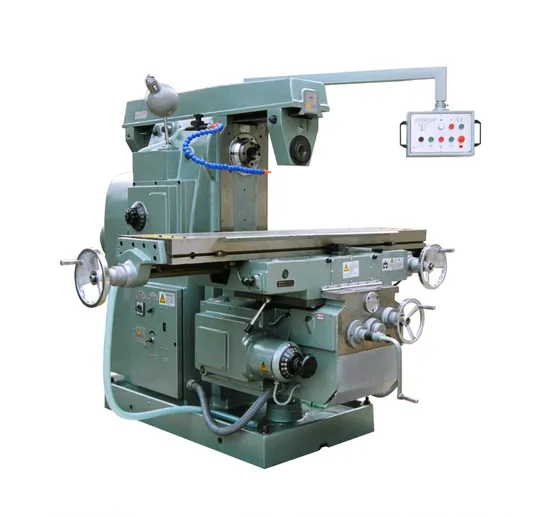

45 Degree Rotary Table Horizontal Milling Machine (HUM42)
| US$7,000.00-13,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HUM42
Structure
Knee-Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Max.Rotary Angle of Table
45 Deg.
Transport Package
Wooden Case
Specification
Horizontal Milling Machine
Trademark
SMAC
Origin
China
Product Description
Features:
Rectangular table guideways with high stability,
hardened and ground table surface,
automatic feeds on X ,Y axis,motorized lifting and falling of table on Z axis.
:Main specification:
Main Specification: (X----longitudinal Y----cross Z----vertical)
| Model | HUM32A | HUM32A x 16 | HUM42 | HUM32 | HUM42A | |
| Table size | mm | 320 x 1320 | 320 x 1600 | 420 x 1800 | 320 x 1320 | 425x2000/2500 500x2000/2500 |
| Longitudinal travel X | mm | 800/780 | 1024/1000 | 1200/1180 | 700/680 | 1250/1600 |
| Cross travel Y | mm | 300/280 | 300/280 | 360/350 | 225/240 | 400 |
| Vertical travel Z | mm | 410/400 | 410/400 | 460/450 | 410/390 | 400 |
| Feed speed steps | 18 | 18 | 18 | 18 | 18 | |
| Feed speed ranges: Longitudinal X | mm/min | 15-750 | 15-750 | 22.5-1180 | 23.5-1180 | 10~1250 |
| Cross Y | mm/min | 15-750 | 15-750 | 22.5-1180 | 23.5-1180 | 10~1250 |
| Vertical Z | mm/min | 5.7-280 | 5.7-280 | 8.6-420 | 8-394 | 2.5~315 |
| Min. distance between spindle center to table | mm | 235-535 | 235-535 | 30-48 | 30-350 | 70~470 |
| Spindle speed steps | 18 | 18 | 18 | 18 | 20 | |
| Spindle speed ranges | kW | 30-1500 | 30-1500 | 30-1500 | 30-1500 | 18~1400 |
| Main motor power | kW | 7.5 | 7.5 | 11 | 7.5 | 11 |
| Overall size | cm | 232 x 179 x 172 | 232 x 202 x 209 | 243 x 226 x 194 | 229 x 177 x 179 | 277/327x253x195 |
| Net weight | kg | 3300 | 3350 | 5200 | 2650 | 5050/5200 |
:Main features:
| Universal knee-type milling machine is suit for milling flat, inclined face angle surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters. |
| When mounted with the index, the machine will be able to perform milling operations in gears, cutter, helix groove, cam and tub wheel. |
| The longitudinal, cross and vertical movements of the table can both be operated by hand and power. |
| And it can be rapid moved, working table and slide ways adopted quality cast hardened ensure high accuracy. |
