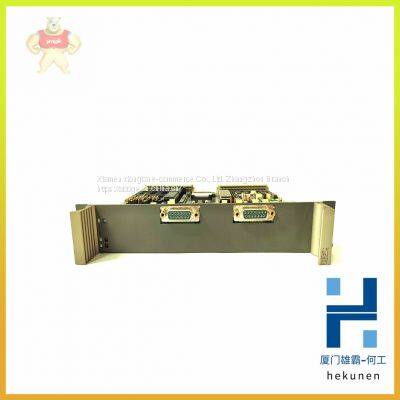

TVB3101-1/ISC ABB The control module is sold as genuine

Product Details

Product Description

Product Description
TVB3101-1/ISC ABB The control module is sold as genuine
TVB3101-1/ISC ABB The control module is sold as genuine
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
Creepage distances and clearances
The creepage and clearance distances correspond to Overvoltage Category II, Pollution Severity 2
Electromagnetic compatibility
Interference immunity
against electrostatic discharge (ESD) acc. to EN 61000-4-2, Zone B, Criteria B
Interference voltage with air discharge 8 kV
Interference voltage with contact discharge 6 kV
Interference immunity
against radiated interference (CW radiated) acc. to EN 61000-4-3, Zone B, Criteria A
Test field strength 10 V/m
Interference immunity
against transient interference voltages (burst) acc. to EN 61000-4-4, Zone B, Criteria B
Interference immunity
against conduction-bound interferences
(CW conducted) acc. to EN 61000-4-6, Zone B, Criteria A
Test voltage 3V Zone B
Impulse voltage acc. to EN 61000-4-5, Zone B, Criteria B
Emitted interference acc. to EN 55011, Group 1, Class A
Mechanical data
Connection type/Terminals
Mounting horizontal
Degree of protection IP 20
Housing acc. to UL 94
Vibration-resistance all three axes
2 Hz ... 15 Hz, continuous 3,5 mm
15 Hz ... 150 Hz, continuous 4 g
Vibration-resistance with SD card plugged in 15 Hz ... 150 Hz, continuous 1 g
Shock-resistance all three axes
15 g, 11 ms, semi-sinusoidal
Device mounting
DIN top-hat rail acc. to DIN EN 50022 35 mm, overall height 7.5 mm or 15 mm
Screw mounting Screws with 4 mm diameter
