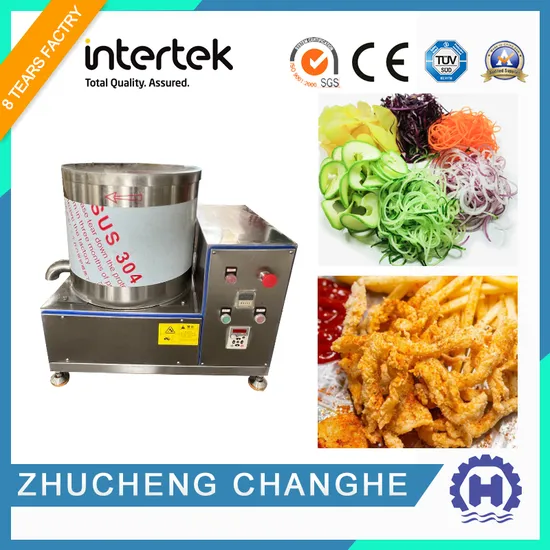

Centrifugal Potato Chip Degreaser Commercial Potato Chip Production Line

Product Description

Low Price Centrifugal Dehydrator Machine Potato Chips Deoiling Machine Commercial French Fries Product Line on Hot Sale

Model	Dimension(mm)	Weight(kg)	Power(kw)	Capacity(kg/h)
JHYTS-400	1050*510*710	370	1.1	200-340
JHYTS-500	1100*620*760	390	1.5	350-450
JHYTS-600	1220*720*760	430	2.2	450-550
JHYTS-800	1420*920*815	490	3	650-800

Product Description
The variable frequency vegetable dehydrator is suitable for removing surface moisture of various vegetable products, and is an ideal processing equipment for dehydrated vegetables in the vegetable processing industry. Based on the technical parameters required for vegetable processing materials, the machine uses frequency conversion technology and photoelectric sensor technology to realize the control of working time, working speed, start and stop; It is characterized by safe and reliable operation, simple operation and low noise.
Detailed Photos
Installation Instructions
Working principle: put the materials into the sieve basket evenly and evenly, put them into the rotating cage, close the upper cover, and the machine will automatically start up and work. The centrifugal force of the rotating cage will make the moisture of the materials in the basket throw out of the basket and be discharged by the drain.
Customer site
1 Place the machine on a solid, dry and ventilated level ground to ensure that the machine works stably and reliably.
2 Check whether there are foreign matters in the basket and rotating cage and clean them to avoid damaging the machine during operation.
3. The voltage used by this machine is 220V~, and confirm that the power supply voltage is consistent with the voltage used by this machine; The power switch shall be installed outside the machine body before entering the line.
4. Extend the power cord, reliably ground the core with grounding symbol, and connect the other two
The wire core is respectively connected to the full-stage disconnection large-distance power switch; The incoming and outgoing parts of the power line and the machine shall be fixed and sealed to prevent water leakage and electric leakage.
5 Check the photoelectric control probe at the rear of the machine cover. The correct position is to align with the through-hole of the follower disc on the left side of the cover hinge. The distance between the follower disc and the through-hole is 5-7 mm. Check that there is no error. Close the power switch and the upper cover for no-load test run. The test run can only be carried out if there is no abnormality at all parts.
6. The machine shall not have shock vibration or abnormal sound during the no-load test run, otherwise, the upper cover shall be opened, the machine shall be shut down and the power supply shall be cut off for inspection, and the machine can only be operated after the fault is eliminated.
7 Before work, connect the drain to the drain pipe or align it with the drain hole on the ground.
8. The operating speed and working time of the machine have been preset before leaving the factory. The operating speed is preset to 800 rpm, and the time for running a working cycle is preset to 1 min (60 seconds). The user can make necessary adjustments according to the use situation and requirements, but should not exceed the maximum rated speed of the main shaft of 1200 rpm.

Packaging & Shipping

Matching equipment

Company Profile
Zhucheng Changhe Machinery Technology Co., Ltd. is a high-tech machinery enterprise specializing in R&D, production, operation and sales. The company has strong technical force and a perfect, complete and scientific quality management system. It has its own scientific research team, production team, sales team and after-sales service team, specializing in the production of pig, cattle and sheep slaughtering equipment, by-product processing equipment, cooking equipment, vacuum packaging machine, rolling vacuum packaging machine, cleaning and air drying equipment, pasteurization line, drying line, smoking stove, frying line and other assembly line equipment. Changhe has strong technical force, high-precision processing equipment and professional sales service system. In recent years, it has been widely praised by domestic users. The company insists on serving customers with high and new technology, and wins the trust of users with superior product quality. Facing the fierce competition in the market, we always adhere to the business philosophy of "quality first, customer first". On the basis of "100% quality and 100% service", the company has improved its after-sales service and strives to manufacture products with excellent quality to serve customers.
FAQ
Q:Are you a trading company or a factory?A:We are a factory with more than 6 years of experience in food technology. Q:How do you guarantee the quality of the machine?A: We have export experience for 6 years and customers who bought our machine have tested the machine before it was shipped .Q:Can the voltage of the machine be adapted ?A:We can adapt the machine to your needs to match your local voltage.Q:Can you ship the machine to my address?A:Yes, we support shipping and air transportation, as well as door-to-door service.Q:Can I go to China and visit your factory?A:Sure, we are in Weifang, China, welcome to our factory.Q:Do you have operation manual with the machine?A:Yes, of course, it is in English version.Q:Can you offer us the necessary paper to do the customs clearance?A:Yes, we will send you the commercial invoice, packing list, bill of lading and we'll also meet your other request.Q:How about the packing?A:Outside Package: Plywooden packing case as export standard ; Inside Package: Stretch film
