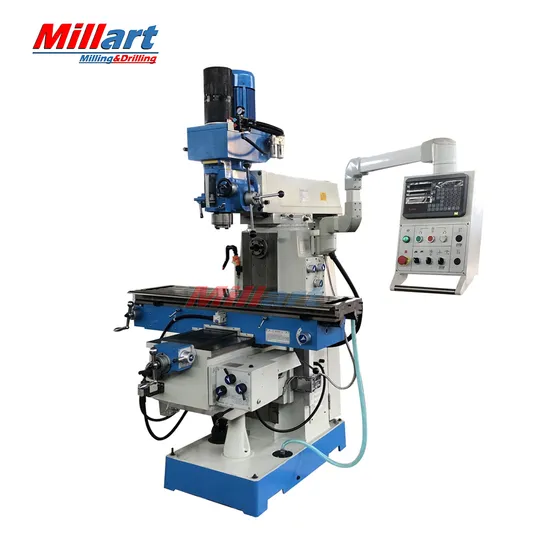

X6332z Universal Drilling Milling Machine Price
| US$7,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6332Z
Type
Worktable Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
1370X32
T/Slot/Width/Distance
3/14/70
Table Loading Capacity
400
Table Longitudinal Travel
1000
Table Cross Travel
380
Table Vertical Travel
440
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
L&T
Origin
Tengzhou China
HS Code
84592900
Production Capacity
200PCS/Month
Product Description
X6332Z Universal Drilling Milling Machine PriceFeature:
1. Flexible, multi-function of milling, drilling and tapping .
2. Easy to operate, convenient maintenance
3. High speed milling head , high precision, swivel 90°, flexible processing.
4. Cast iron after artificial aging treatment,high precision,long service life
5. Hardening treatment.
6. Equipped with manual lubricating device, the lubrication on the lead screw and guideway
7. X, Y, Z-axis auto-feeding.
Technical Parameter :
| Model | UNIT | ZX6332Z |
| Table size | MM | 1370x320 |
| T slot no./width/distance | 3/14/70 | |
| Table loading capacity | kg | 400 |
| Table Longitudinal travel | mm | 1000 |
| Table Cross travel | mm | 380 |
| Table Vertical travel | mm | 440 |
| Spindle taper | ISO40 (V/H) | |
| Spindle sleeve stroke | mm | 120 |
| Spindle speed /step -- Vertical | rpm | 90-2000/8 steps |
| -- Horizontal | rpm | 40-1300/12steps |
| Vertical spindle axis to column surface | mm | 200-800 |
| Vertical spindle nose to table surface | mm | 200-640 |
| Horizontal spindle axis to table surface | mm | 0-440 |
| Horizontal spindle axis to arm bottom | mm | 200 |
| Ram travel | mm | 600 |
| Longitudinal feed rate | mm/min | 22-555/8steps |
| Longitudinal rapid moving | mm/min | 760 |
| Cross feed rate | mm/min | 22-555/8steps |
| Cross rapid moving | mm/min | 760 |
| Vertical feed rate | mm/min | 7-150/8steps |
| Rapid Traverse vertical | mm/min | 210 |
| Main motor | kw | 2.2(V) 3.0(H) |
| Feed motor | kw | 1.1 |
| Coolant motor | kw | 0.04 |
| Packing dimensions | mm | 1400x1600x2250 |
| Net/Gross weight | kg | 1850/1950 |
Standard accessories:
| Drill chuck |
| Reduction sleeve |
| Draw bar |
| X,Y,Z axis auto power feed |
| Mill arbors |
| Collet chuck kits |
| Coolant system |
| Chip tray |
| Work lamp |
| Tools and box |
Optional accessories
| 3 axis DRO |
| Air draw bar |
| 58 pcs Clamping kits |
| Spindle protection |
| Worktable protection |
| Rotary table HV10 |
| Dividing head F11-160A |
| Machine vice 160mm |
