Automatic Manufacture Vacuum Equipment Emulsifying Homogenizer Mixer Machine

Product Description

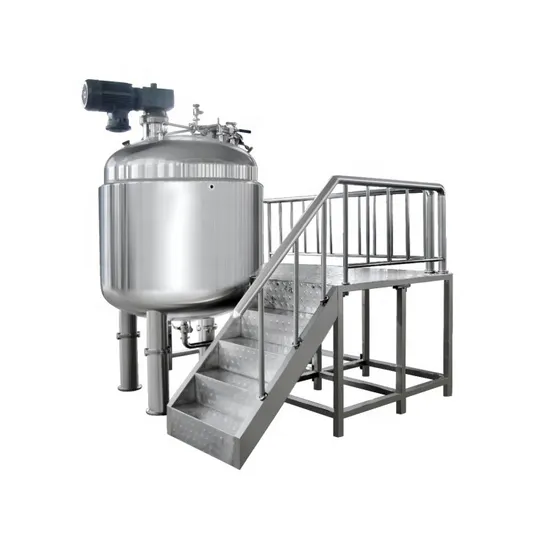

Product Description The SED-100RZ Vacuum Emulsifying Mixer is composed of main pot(emulsifying pot),a water phase pot and an oil phase pot, vacuum unit, up-and down system, electrical control system and the motor frame etc.
The main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.
Cosmetic homogenizing machine means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic sheraing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be disperesed and emulsifed instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
The product mainly applied in such industries as daily chemical care products, biopharmacutical industry, food industry, paint and ink ,nanometer materials, petrochemical. Feature 1. The material of contacted part is SUS316L stainless steel, inside and outside of the equipment are with mirror polishing and get to GMP standard. 2. All pipelines and parameter are controlled automaticlly. And the electric appliance which are imported from foreign country and so on. 3. Emulsifying tank is with CIP cleaning system,it make the cleaning to be easy and effective. 4.Emulsifying tank adopts tertiary agitating system, and during the emulsification ,the whole processing is under a vacuum environment, so it not only can eliminate spume which created in the emulsification processing ,but also can avoid the unnecessary pollution. 5. The homogenizer adopts the most advanced technology,it can get a ideal emulsifying effect.The speed of high emulsification is 0-3500r/min, and the speed of low mixing is 0-65r/min.
Specification

Product Name	SED-100RZ Vacuum Emulsifying Mixer
Working volume	100L
Pressure	-0.1Mpa in pot 0.1Mpa in jacket
Temperature	≤100ºC
Power supply	380V/50Hz
Material	Stainless steel

Company Profile Hangzhou Shengde Machinery Co., Ltd.
was established on January 18,2018, which is specialized in sales of tablet counting machine, liquid filling machine, capping machine, bottle unscrambler, effervescent tablet tube filling machine.
We are located in Hangzhou City, Zhejiang Province with convenient transportation access. We have a team of over 50 professionals for decision-making and management. In addition, we have a showroom in Los Angeles, which provides convenient cooperation opportunities for our customers in North America. Shengde Machinery has a complete after-sales service system and fully responds to customer needs. The company fully implements the core value of "Customer First" to provide customers with comprehensive,thoughtful and meticulous services. We have exported to more than 80 countries including the United States, Canada, the United Kingdom, Germany,Italy, Australia, South Korea, Japan, Thailand. And we have CE certifications. Industry standards and quality control procedures are strictly enforced and GMP requirements are followed.
Adhering to the "quality for development, innovation for the future" business philosophy, Shengde Machinery sincerely look forward to working with you.
FAQ
Q1:Are You A Factory or A Trading Company A: We Provided Perfect OEM and After-sale Service.Q2:Where is Your Factory? How Can I Visit Your Factory? A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel PlanQ3:Can You Send Me the Video To Show The Machine Works? A:Certainly, We Have Made Video of Every MachineQ4:How Can I Know Your Machine Is Designed For My Product A:You Can Send Us Samples of Your Product and We Test It On MachineQ5:How Can I Pay My Order? A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying MethodsQ6:Do you Have a Ce Certificate? A:For Every Model of Machine, It Has a CE CertificatedQ7:What about install? A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
