Wood Engraving Carving Furniture Wooden Chair Leg Rotary 4 Axis CNC Router Machine

Wood Engraving Carving Furniture Wooden Chair Leg Rotary 4 Axis CNC Router Machine

US$10.00 1 Piece (MOQ)

Basic Info.

Model NO.
JCW1325R-4H
Certification
CE, SGS; TUV; BV
Customized
Customized
Condition
New
Product Name
Wood Engraving Carving Furniture Wooden Chair Leg
Rotary Working Size for Each Head
250mm Diameter *1300mm Length
Flat Working Size for Each Head
250mm Width *1300mm Length
Table (Option)
T Slot with Clamps
Spindle
2.2kw /3kw
Driving System
Stepper Motor and Driver
Inverter
Fuling
Control System
4 Axis DSP
Option 1
3D Scanner
Option 2
4 / 8 / 10 / 14 Heads
Transport Package
Wrapped with Protection Film, Fastened Into Contai
Trademark
CHAODA
Origin
China

Product Description

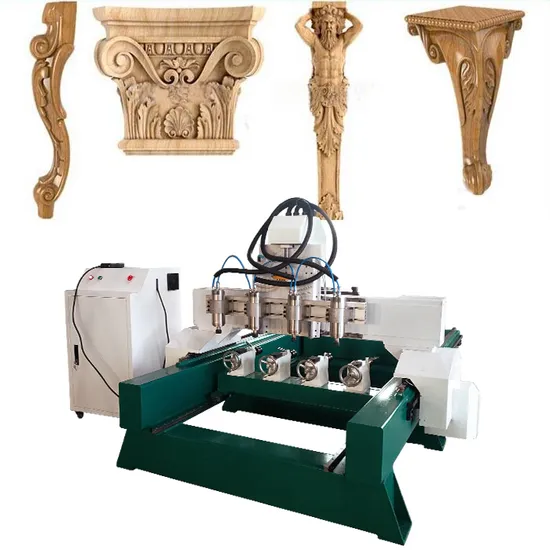

Wood Engraving Carving Furniture Wooden Chair Leg Rotary 4 Axis CNC Router Machine
This item is very suitable for furniture bulk production, multi heads can work at the same time, also can work alone, many times increasing efficiency. Adopt 4 axis DSP control system, very stable and easy to use. Well compatibility in software: all kind of 3D carving softwares. We can make Multi heads machine with any working size according to customers' specific requirements. Except furniture legs, it also can process 3d sculptures and complex artworks, can easily engrave 360 degree Human body, Buddhist statue, sculptures and other art works.
Model No. JCW1325R-4H
Machine structure Heavy duty steel structure
Table Removable; T-slot with clamps (option)
Rotary working size 250mm diameter,1300mm length * 4 PCS
Spindle power 2.2kw /3kw water cooled spindle
Max moving speed 20m/min
Max working speed 15m/min
Control system 4 axis DSP
Motor Stepper motor and driver
Inverter Fuling
Max Burden weight 1000kg
Option 4 / 8 / 10 / 14 heads
Voltage AC380V,3 phase,50Hz

This machine is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair
handrails, prop guns, wooden column cylinders... it also can make 3d small statues, figures, sculptures, 360 degree human
body, Buddhist statues… etc.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
