Selling Construction Machinery of 20 Tons Medium-Sized Hydraulic Backhoe Excavators
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
ME210.9
Type
Backhoe Loader
Usage
GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
ISO9001: 2000
Condition
New
Operating Weight
21.3t
Power
133kw
Swing Speed
11.5r/Min
Arm Length
2900mm
Boom
5700mm
Ground Pressure
46.5kpa
Hydraulic Oil Tank Capacity
246L
Overall Length
9600mm
Overall Width
2780mm
Total Height
3040mm
Track Gauge
2180mm
Teack Width
2780mm
Track Shoe Width
600mm
Transport Package
Complete Machine
Specification
21.3t
Trademark
MAXPOWER
Origin
Jining
HS Code
8429521200
Production Capacity
1000 Pieces/Year
Product Description
Product DescriptionME210.9 Excavator suitable for complex earth and rock working conditions.
With powerful engine, which is energy-efficient and matched the best fuel economy adjustment, the efficiency of this engine can be greatly improved.
The world known famous of hydraulic system, which ensures the reliability and durability of the product.
New comfortable cabin, with AC, radio and USB joint, larger vision.

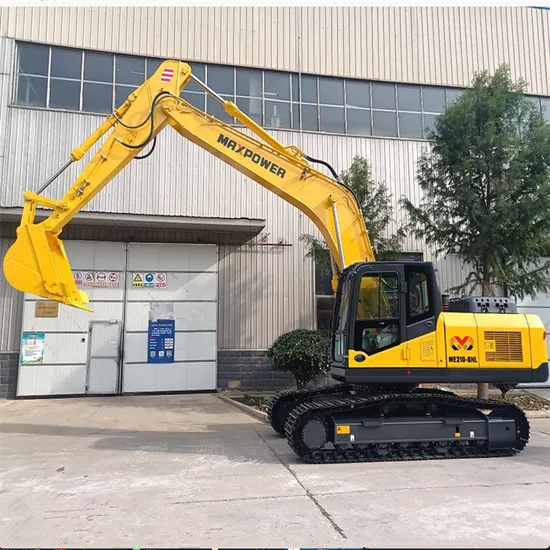

Detailed Photos
Our Advantages
One-stop solution There are representative offices and the first-class of international distributors in more than 30 countries, repling on the efficient and high-quality network built by these represend tative offices/distributors and service providers, timely delivery of high-quality products and services, helping global customers realize value.
FAQ
Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
Q: What is the delivery time ?
A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,sir ,of course.
Product Parameters
| MODEL | ME210.9 | |
| Operating weight (T) | 21.5 | |
| Bucket capacity (m3) | 1.0 | |
| Engine model | B5.9-C | |
| Rated power (kw/r/min) | 133/2000 | |
| Volume of fuel tank (L) | 420 | |
| Travel speed (km/h) | 5.2/3.5 | |
| Swing speed(r/min) | 11.5 | |
| Max climbing degree° | 70 | |
| Bucket digging force at power max (KN) ISO | 157 | |
| Average grounding pressure(KPA) | 46.5 | |
| Hydraulic pump model | FMP112APDT | |
| Maximum flow (L/min) | 215*2 | |
| Setting pressure (MPa) | 37 | |
| Volume of hydraulic tank (L) | 246 | |
| A Overall length (mm) | 9560 | |
| B Overall width (mm) | 2780 | |
| C Overall height (to top of boom)(mm) | 3040 | |
| D Overall height (to top of cab)(mm) | 3120 | |
| E Counterweight ground clearance (mm) | 1065 | |
| F Min. ground clearance (mm) | 466 | |
| G Tail swing radius (mm) | 2720 | |
| H Track grounding length (mm) | 3260 | |
| J Track length (mm) | 4060 | |
| K Track gauge(mm) | 2180 | |
| L Track width (mm) | 2780 | |
