Stand up Zipper Pouch 3 Side Sealing Bag Making Machine

Product Description

Stand up Zipper Pouch 3 Side Sealing Bag Making Machine
Product Description
Features For Stand up Zipper Pouch 3 Side Sealing Bag Making Machine:
1. Suitable for kinds PE laminated film ,Paper Laminated, Alu. Laminated,and co- extrude film
2. To produce three side seal bags, stand up pouch,zipper pouch,
3. EPC and double photocell tracking for unwinder
4. Unwinder with automatic tension control
Bags You can make on Stand up Zipper Pouch 3 Side Sealing Bag Making Machine :
1.3 sides sealing bag
2. Centra sealing bag
3. Centra sealing and gusset
4. Sand up bag
5.Four Side Seal bags
6.zipper bags
Main Technical Parameters For Stand up Zipper Pouch 3 Side Sealing Bag Making Machine

Model	BHZD--600B	BHZD-500B
Max.Diam eter of roll material	600mm	600mm
Max.width of roll material	1200mm	1000mm
bag size width	70-600mm	70-500mm
bag size length	70-380mm x N ( N≤6)	70-380mm x N ( N≤6)
bag-making speed	30-150pcs/min	30-150pcs/min
Speed will be changed according to your bags
Temperature control	Normal temperature to 3600C	Normal temperature to 3600C
Total power	35kw	32kw
gas resource	0.6mPa(6kg/cm2 )	0.6mPa(6kg/cm2 )
Cooling water	5L/min	5L/min
Machine weight	6000kg	5500kg
outline diameter	L11505*W2400*H1865mm	L11505*W2300*H1865mm

Optional:
1) Double layer unwinder device
2) Punching device for handle
3) shaped pouch device
Detailed Photos

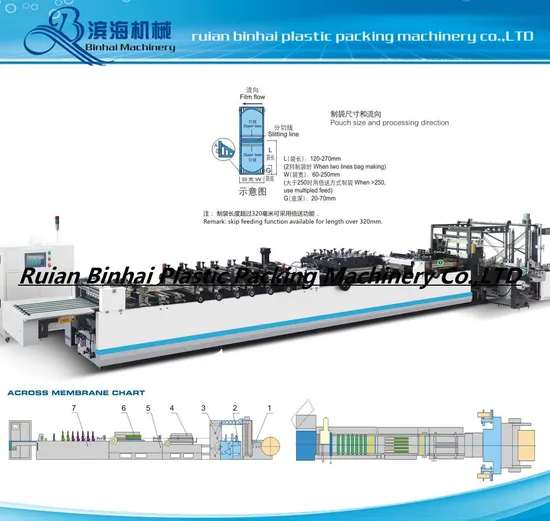

those 3 pictures are Double Lines stand Up bag making machine with Four side seal with Double winders
Double Winders when make big bags, or for quick film roll changing .
------ Double tension controller .
------ air shafts
------ Down winder auto loading .
If your bags is stand Up Bags, pls check your bags bottom is folded or patched .
Pls refer to below pictures .
Bag Samples
Touch screen . Standard one is English / Chinese
we can input your language , in the picture , is Turkish . Certifications
CE , ISO , CO , etc Certificates ., If need other certificates , should tell us before shipping .
we shipped to USA, Turkey , Portugal , Span , Croatia ,Moldova , Colombia,Tailand , Indonesia ,United Arab Emirates.Russia ,IRAN , Ukraine , Bangladesh ,india,Sudan , Mexico , Africa ,Angola, Kenya , Algeria ,Ghana and other cities around the world.
Rich export experience , help to make perfect customs documents.
Packaging & Shipping
Packing and shipping
Machines will Packed with Waterproof oil , stretch Film
If need , Fumigation wooden case as option
Delivery date: 35days after receipt of down payment.
Shipment from Ningbo port ,China By Sea
Company Profile
FAQ
RFQ:
Are you a factory or Trading Company
We are a factory with experienced exporting products. We also help clients
To look for products which they can not sure of.
Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 40minutes by plane from Shanghai, about 5 hours by train from
Shanghai .
We are pleasured to pick up you when you arrived .
How you work if I am not come to China
Usually , I will offer you our All Government Certificates (all Certificates are got after Government persons' Strict Investigation
to show that we are a true exist company,
Then I will show you machines that you want to buy on computer by video and pictures , So that If you have any questions or Good Ideas
on machines , we will discuss with engineers to offer you a well resolution .
When machines finished , If you are too busy to come To China , we can show you pictures and videos .If machines not good ,you can refuse
to pay us .
Surely , If it is no problem , you should pay us the rest 70% Before shipping .
The Whole Shipping Process We will keep in Touch with you by Email or Whatsapp .
IF Have more questions , Contact with me !!!
THE ENDING OF Stand up Zipper Pouch 3 Side Sealing Bag Making Machine..........THANKS FOR YOUR READING
