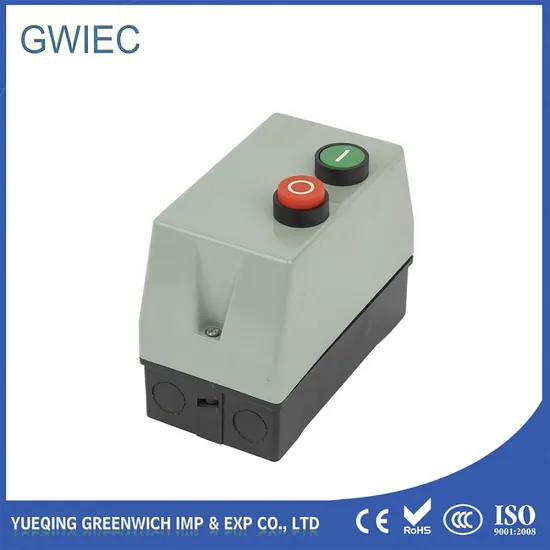

CE Standard Sliver Contact Motor Magnetic Starter (9-95A) with 1years Warranty
| US$6.87-7.21 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LE1-D12
Phase
3
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
95A
Type
Ac Contactors
Product Name
Starter
Certification
CCC, ISO: 9001, CE
Rated Voltage
up to 550V
Rated Current
9-95A
Type of Enclosure
IP42 / IP65 / IP55
OEM
Available
Standard
CE/IEC947-4-1
Trademark
GWIEC
Origin
Zhejiang, China
HS Code
8411991090
Product Description
Application1.LE-D Series magnetic starter is mainly applied to circuit of AC 50 or Hz.voltage 550V for far distance making and breaking circuit and frequently starting and controlling motor
2.It has the features small volume,light weight,low power consumption,high efficiency safe and reliable performance
3.It complies to IEC947-4-1
Specification
| Type | Rated Current(A) | Maximum Power AC3 duty (KW) | Type of enclosure | SuitableThermal Relay(A) | |||||
| 220V 230V | 380V 400V | 415V | 440V | 500V | 660V 690V | ||||
| LE-D09 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | IP42 IP65 | LR2 D1312 LR2 D1314 |
| LE-D12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | LR2 D1316 | |
| LE-D18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | LR2 D1321 | |
| LE-D25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 | LR2 D1322 LR2 D2353 | |
| LE-D32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | IP55 | LR2 D2355 |
| LE-D40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 | LR2 D3353 LR2 D3355 | |
| LE-D50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 | LR2 D3357 LR2 D3359 | |
| LE-D65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | LR2 D3361 | |
| LE-D80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 | LR2 D3363 LR2 D3365 | |
| LE-D95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | LR2 D3365 | |
