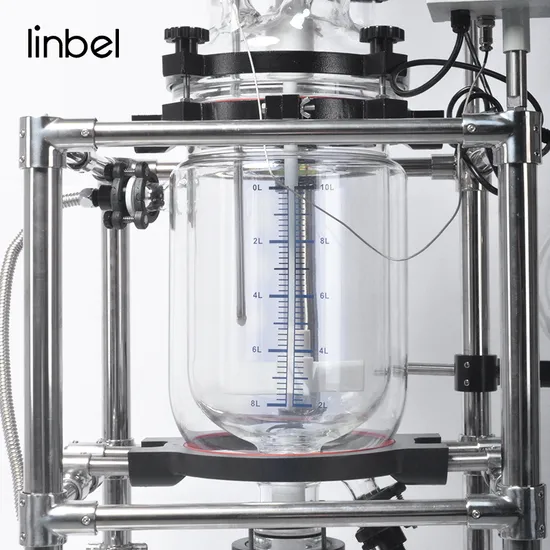

10 Liter Jacketed Glass Reactor with Factory Price
| US$1,500.00-1,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GR-10L
Type
Tank Reactor
Material
Glass
Capacity
<50L
Structure
Double Jacketed
Pressure
Negative
Agitator Model
Paddle Agitator
Tower Reactor Type
Double Jacketed
Heating
Outside (Inside) Coil Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Name
Photochemical Plug Flow 10L Reactor in Lab
Application
Chemical Testing Research
Volume
10L
Heating Method
Electricity Heating
Heating Type
Heating Temperature Control Module
Glass Material
Borosilicate Glass 3.3 (Gg-17)
Machine Type
Double Layer
Transport Package
Wooden Box
Specification
Double jacketed
Trademark
Linbel
Origin
Shanghai
Production Capacity
1000set/Month
Product Description
| Model | GR-10L | |
| Volume(L) | 10 | |
| Jacket volume(L) | 3 | |
| Condensation area(m2) | 0.6 | |
| Feeding tank volume(L) | 1 | |
| Recovery tank volume(L) | 5 | |
| Kettle cover diameter | Impeller diameter | 50# flangetype |
| Temperature sensor diameter | 40# flangetype | |
| Condenser connection | 50# spherical grinding | |
| Liquid feed inlet | 34# standard grinding×1 | |
| Feeding tank interface | 40# standard grinding | |
| Solid feed inlet | 80# flangetype | |
| Glass assembly | High borosilicate glass 3.3 | |
| Main frame | SUS304 | |
| Stirring paddle | Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium | |
| Motor | For viscous materials, high-power motors can be used | |
| Move method | Lockable casters | |
| Working temperature(ºC) | -120ºC~300ºC | |
| Maximum temperature difference(ºC) | ≤60 | |
| Pressure in kettle(MPa) | -0.1~0.1 | |
| Jacket pressure resistance(MPa) | ≤0.1 | |
| Pressure rise rate of vacuum system | ≤2kPa/h | |
| Mixing motor power(W) | Common 120W/ explosion proof 180W | |
| Speed regulation mode | Frequency control | |
| Speed adjustment range(rpm) | 0~600 | |
| Temperature sensor | PT100 | |
| Temperature display accuracy(ºC) | ±0.1 | |
| Temperature range | Water: RT~90ºC | |
| Oil: RT~300ºC | ||
| Interface size of stainless steel insulation hose | ½in external screw thread | |
| Seal material | PTFE | |
| Installation height of discharge valve(mm) | 450 | |
| Power | 220V/110V,50/60Hz | |
| Environment temperature(ºC) | 5~35 | |
| Relative humidity(%) | ≤65 | |
| Size(mm) | 600W*570D*2050H | |
| Weight(kg) | 70 | |
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
