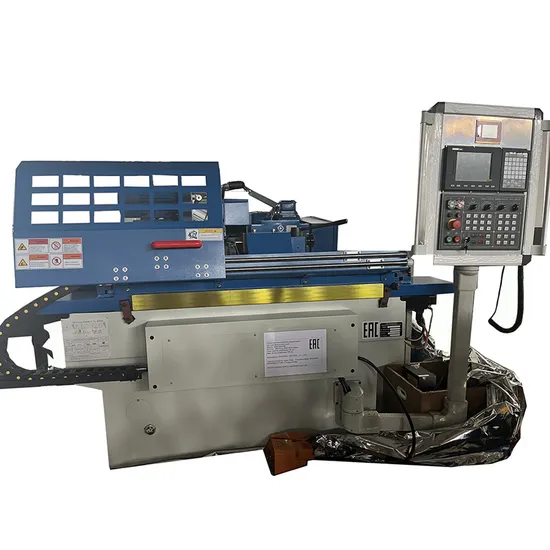

Mke1420 CNC Controller GSK/Siemens/Fanuc Universal External Cylindrical Grinding Machine
| US$28,875.00 | 1 set (MOQ) |
Basic Info.
Model NO.
MKE1420
Type
Surface Grinding Machine
Processing Object
Metal Surface
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Grinding Diameter
400mm
Max Grinding Length
500mm
Internal Grinding Diameter
100mm
Max Grinding Depth
125mm
Headstock Taper
Mt4
Max. Workpiece Weight
50kg
Tailstock Taper
Mt4
Headstock Swivel Range
30degree
Grinding Spindle Speeds
1670rpm
out Disc Diameter
400X50X203mm
Grinding Head Trvel
200mm
Total Power
12.6kw
Transport Package
Wood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
84601900
Production Capacity
80sets/Month
Product Description
Product DescriptionProduct Parameters
cnc universal cylindrical grinding machine
| MKE1420x500 | MKE1420x800 | |
| Height of center mm | 135 | 135 |
| Max grinding diameter(without steady rest) mm | 200 | 200 |
| Max grinding diameter(with steady rest) mm | 60 | 60 |
| Min grinding diameter mm | 8 | 8 |
| Max grinding length mm | 500 | 800 |
| internal grinding diameter range(with steady diameter) mm | 10-90 | 10-90 |
| internal grinding diameter range (without steady rest) mm | 13-100 | 13-100 |
| Max grinding depth mm | 125 | 125 |
| Headstock taper | MT4 | MT4 |
| Max. workpiece weight kg | 50 | 50 |
| tailstock taper | MT4 | MT4 |
| Tailstock spindle stroke | 28 | 28 |
| Min grinding wheel feed mm | 0.001 | 0.001 |
| Headstock swivel range | ±30° | ±30° |
| Grinding spindle speeds rpm | 1670 | 1670 |
| Chuck diameter mm | 200 | 200 |
| Worktable swivel range | -5°~+9° | -3°~+7° |
| Table feed m/min | 0.05-5 | 0.05-5 |
| out disc diameter mm | 400x50x203 280x50x203(min) | 400x50x203 280x50x203(min) |
| Circumferential speeds m/sec | 35 | 35 |
| Work spindle speeds rpm | 25-380 | 25-380 |
| Grinding head trvel mm | 200 | 200 |
| Feed per hand-wheel rotation on wheelhead mm | 0.1mm | 0.1mm |
| Travers per graduation on wheelhead mm | 0.001mm | 0.001mm |
| Max. angle of table swivel | -5°~+9° | -3°~+7° |
| Max. inner disc diameter mm | 50*40*16 | 50*40*16 |
| Min. inner disc diameter mm | 45*35*10 | 45*35*10 |
| total drive capacity KW | 12.6 | 12.6 |
| Motor rating-grinding spindle/hydraulic pump KW | 4/0.75 | 4/0.75 |
| Motor rating of headstock /coolant pump KW | 0.75/0.13 | 0.75/0.13 |
| Motor rating of grinding head moving KW | 10Nm | 10Nm |
| Motor rating of worktable moving KW | 10Nm | 10Nm |
| diamensions (LxWxH) mm | 2500x1600x1700 | 3100x1600x1700 |
| weight kg | 2300 | 2700 |
