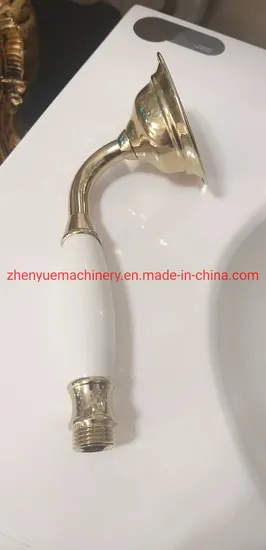

400ton Sanitary Fitting / Bathroom Fitting / Sanitaryware Injection Molding Machine Stable Performance High Quality Competitive Cost Save Energy

Product Description

400ton Sanitary Fitting Injection Molding Machine (Model: ZX-400)
1,Photo
2, Technical Parameter

ZX-130	Injection Unit Date		A	B	C
	Screw diameter	mm	70	75	80
	Screw L/D ratio	/	21.4	20	18.7
	Theoretical shot volume	cm3	1443	1657	1885
	Shot weight(PS)	g	1328	1524	1734
	Injection rate	g/s	365	419	476
	Max.screw speed	rpm	160
	Clamping Unit
	Clamping force	KN	4000
	Toggle stroke	mm	720
	Space bettween tie bars	mm	735x735
	Min.mold thickness	mm	250
	Max.mold thickness	mm	750
	Hydraulic ejection stroke	mm	200
	Hydraulic ejection force	KN	91
	Others
	Hydraulic system pressure	Mpa	17.5
	Pump motor	kw	47.1
	Heating capacity	kw	25.2
	Oil tank capacity	L	800
	Machine dimensions	m	7.2x1.7x2.6
	Machine weight	Ton	13.6

3, Platen Dimension
4, Machine Dimension (ZX-400)
5, Technical Characteristics

CLAMPING SYSTEM	-FEA designed double-toggle five-joint clamping machinery -High rigidity platen with enlarged space between tie-bar -Movable platen supported by the adjustable slide system which improves platen parallelism and life time of tie-bar and mould -Optimized lubrication system ensuring precision clamping and extending the life time of the clamping
INJECTION SYSTEM	-Double guide bracket structure, multipoint fixed ensure injection smoothly and accurately -High speed and high pressure adopt special injection design, improving injection speed -Injection cylinder, premold oil motor and plastic screw are in the same centreline, to enhance the injection pressure and injection speed, to achieve high precision, fast injection molding
HYDRAULIC SYSTEM	-Adopt the imported pump, low noise, long lifetime, stable performance -High performance hydraulic valve, less failure, fast switch, convenient maintenance -Low pressure mould protect system, which is more suitable for the precision mould -Lubrication oil in dependent lubrication system can lubricate everywhere in the best situation

6, Machine Factory
7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012

Website: zhenyuemachinery.en.made-in-china.com
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
4, all photos above are only for visual reference.
