5-7m3/H Mining Explosion-Proof Wet Spraying Shotcrete Machine Pump for Sale

Product Description

Product Description

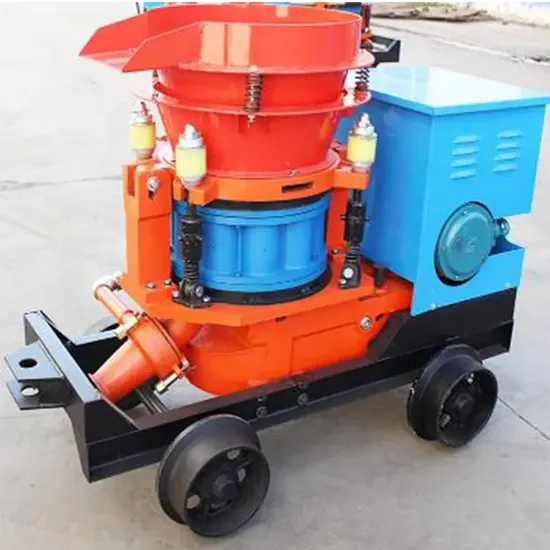

PS-7I type shotcrete machine is a device used for dry spraying, wet spraying, and wet spraying of concrete. Wet spraying can make the mixture mix evenly, and the water cement ratio can be accurately controlled, which is conducive to the hydration of water, cement, and sand. Therefore, the dust is small, the concrete has good homogeneity, and the strength is high. It has the characteristics of advanced technology, reasonable structure, stable performance, energy conservation, and convenient operation, and is widely applicable for shotcrete construction operations in mines, tunnels, culverts, subways, hydropower projects, underground engineering, and high methane mine tunnels in coal mines.
Product Parameters

Model	PS-5I	PS-7I
Production capacity	5-6m3/h	5-7m3/b
Max. Conveying Distance (Horizontal,Vertical m)	horizontal 30m,vertical 20m
Using material ratio	Cement/gravel 1:3~5
Applicable material ratio	≤0.4-0.45	≤0.4-0.45
Maximum aggregate size	φ20mm	φ20mm
Inner diameter of conveying pipe	φ51mm	φ60mm/φ51mm
Working Pressure	0.4-0.6MPa	0.4-0.6MIPa
Air consumption (m3/min)	10~12m3/min	10~15m3/min
Feeding height	0.9m	0.9m
Rotor speed	11r/min	11r/min
Rotor body diameter	φ438mm	φ480mm
Motor model and power	Y132M-6-5.5(KW)	Y160M-6-7.5 (KW)
Vibrator Motor	0.37KW(pneumatic)	0.37KWW(pneumatic)
Voltage level	380V/660V/1140V	380V/660V/1140
Machine track width	610	610
Overall size (mm)	2000X900X1280	2000X900X1280
Overall weight (kg)	800kg	950kg

HSP model (wet-type) shotcrete machine
Model (Wet-type spraying machine)	HSP-5	HSP-7	HSP-9
Capacity (m3/h)	4-5	5-7	6-9
Max. Conveying Distance (Horizontal,Vertical m)	30,20	30,20	30,20
Feeding pipe inner diameters(mm)	51	51/64	51/64
Max. Aggregate Diameters (mm)	15	15	15
Working pressure (MPa)	0.3-0.6	0.4-0.6	0.4-0.6
Air consumption (m3/min)	10-15	10-15	10-15
Rotor Diameter(mm)	438	480(160)	480(175)
Springback (Average)	≤10%	≤10%	≤10%
Liguid accelerator content	0.3-0.7%	0.3-0.7%	0.3-0.7%
Motor Model	Y132M-6-5.5KW	Y160M-6-7.5KW	Y160M-6-7.5KW
Motor Power	0.37KW	0.37KW	0.37KW
The accelerator metering pump	Air operated	Air operated	Air operated
Voltage (V)	380,660,etc	380,660,etc	380,660,etc
Overall size (mm)	1280*700*1280	2000*800*1300	2000*800*1300
Overall weight (kg)	700	800	900

Detailed Photos
Different types of construction machinery:
Packaging & Shipping
FAQ
Q1: Are you factory or trade company?A1: We are factory. And we have ourselves trading company.Q2: Warranty terms of your machine?A2: One year warranty for the machine and technical support according to your needs.Q3: Will you provide some spare parts of the machines? A3: Yes, of course.Q4: What about the voltage of products??Can they be customized?A4: Yes, of course. The voltage can be customized according to your equirement.Q5: How long will you take to arrange production?A5: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 20-30 days.Q6: Can you accept OEM orders?A6: Yes, with professional design team, OEM orders are highly welcome.Q7 Which trade term can you accept?A7: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
