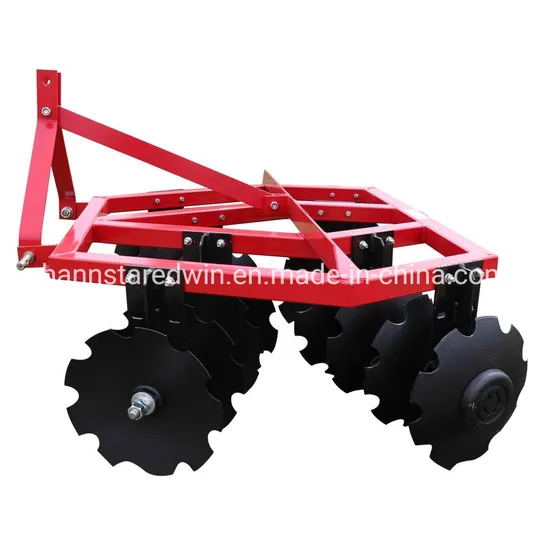

Factory Direct Sale 3 Point Tractor Disc Harrow

Product Description

3 point tractor disc harrow for sale
Basic info
Condition:New
Type:Farm Cultivator
Power Type:3 point link
Machine Type:Disc Harrow
Warranty:1 Year
Use:Ploughing
Place of Origin:Shandong, China
Brand Name:Customized
Weight:310kg
Dimension(L*W*H):Standard Size
Key Selling Points:High Productivity
Marketing Type:Ordinary Product
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Other
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Farms
Showroom Location:France
Product Name:Agricultural 3 point heavy duty disc harrow for tractor
Model:LF-BQX-1.3
Working Width:1.3m
Working depth:80-120mm
No.disc:14
Color:Red or OEM
Usage:Ploughing Soil for Agricultural 3 point heavy duty disc harrow for tractor
Item:Disc harrow
Certification:Other
After Warranty Service:
Video technical support, Online support
Local Service Location:France
Supply Ability:500 Set per Month
Packaging & Delivery
Packaging Details:Iron case
Port:Qingdao /Tianjing/Shanghai

Model	LF-BQX-1.1	LF-BQX-1.3	LF-BQX-1.5	LF-BQX-1.7	LF-BQX-1.9	LF-BQX-2.3
Working Width(m)	1.1	1.3	1.5	1.7	1.9	2.3
Working depth(mm)	80-120
No.of disc(pcs)	12	14	16	18	20	24
Disc diameter(mm)	460
Weight(kg)	200	220	240	260	310	360
Tractor power(hp)	12-20	15-25	5-35	30-35	35-45	50-60
Linkage	3 point linkage Cat I

Advantages:
1.It is a trailed hydraulic offset disc harrow for 12-60HP four wheels tractor
2. This hydraulic trailed heavy disk harrow is designed in the standard of Europe.
3.With high strength, good seal, the advantages of long life products.
4. More strong harrow frame and to be in long working life.
5.Unique design of bearing assembly can keep good seal.
6.The disc blades are for 65Mn steel.
