Kraft Paper Tube Making Machine Thickness 2 mm Diameter 35mm

Product Description

Factory recommend paper core tube machine used for making toilet roll tape roll core Features of paper tube machine
1. Cheaper price ,high popularity,high performance.
2. Adopted PLC logic control system.
3. Main motor is adopt vector type of high torque inverter for speed regulate
4. Positioning length by photoelecricity with auto speed changing function,in order to 5,meet high cutting precision.
5. Modulanzation electric layout designing for easy and science using,maintainng and repairing.
6. There is a remote controller for easy operating(to stop or slow down the machine when lacked paper).
7. Low noise driving designing.
8. Adoptd double size gluing and independent stainless steel gluing box,with imported silicone tube.
Technical parameters

Winding diameter	20--200mm	Paper roll	3-16 layers
Reel speed	3-16m/min	Wall thickness	1-8mm
Transmission mode	Automatic tensioning and anti off type chain transmission	Control way	Multi point operation panel
Winding head	2 heads Single belt	Worker	2 people
Coating method	Double side automatic glue	Winding foxed mothod	lamping type + flange type bidirectional locking
Cutting mothod	Single round knife synchronous automatic cutting	Definite form	Infrared precise fixed length
Host power	7.5KW	Host rate	WPO 1:30
Auxiliary power	0.37KW+0.25KW	Speed control	Computer frequency conversion
Host size	2600*1700*1600	Power	380V RSTN
More than and 80 feature set, any set of machine operation		On one side or two sides of any glue
Automatic cutting and automatic cutting		Infrared + host automatic transmission to make the length of the cut pipe more accurate (error 1-2mm)
Cutting automatic synchronous speed, automatic return		Digital display with head angle adjustment (optional)
Frequency conversion speed control than ordinary electromagnetic speed adjustable 30-60%		Can increase the electric heating drying device
Automatic shutdown protection (optional)		Ultra low noise.<65 DB
Stainless steel plastic box and press rubber poly knife, durable		Single round knife cutting, the cut is more smooth, more stable performance

Processing flow chart
Factory onsite

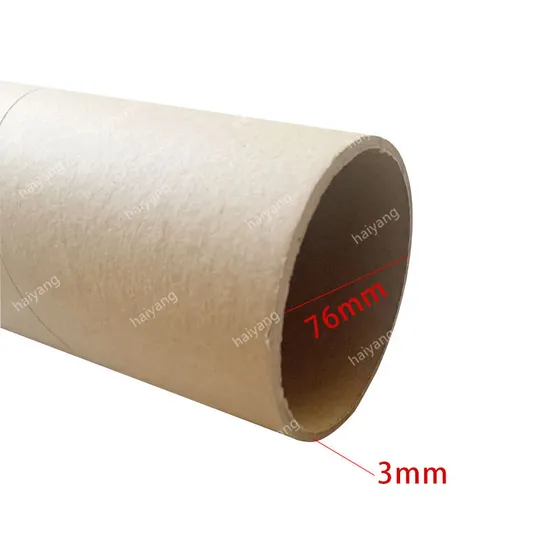

Finished products
