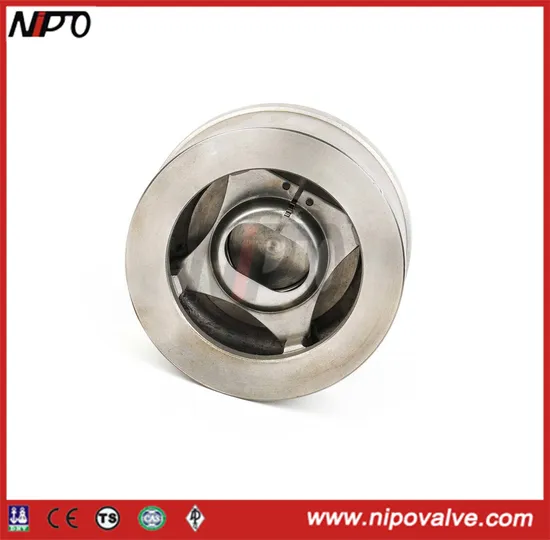

Stainless Steel Spring Loaded Wafer Type Lift Check Valve
Basic Info.
Model NO.
H71W
Material
Stainless Steel
Connection Form
Wafer
Structure
Lift
Pressure
Ordinary Pressure
Function
Ddcv Double Lobe
Sealing Form
Metal to Metal
Flow Direction
Unidirection
Standard
ANSI
Application
Industrial Usage, Water Industrial Usage, Household Usage
Testing
API598, GB/T26480
Class
150lb-900lb
Certificates
API 6D, Ce, ISO9001
Transport Package
Standard Export Wooden Case
Specification
1/2"-8"
Trademark
NAIBANG
Origin
China
HS Code
8481300000
Production Capacity
8000PCS/Year
Product Description
WAFER TYPE LIFT CHECK VALVEFeatures
1.The valve disc moves up and down along the midline of the valve body. Under the pressure of the fluid which flows in one direction, the valve disc will be raised up from the sealing surface of the valve seat. If there is backflow, the valve disc will return back to the valve seat to cut off the medium.
2.Short face to face dimension ,small volume and light weight ;
3.Valve disc open and close quickly ,so it has a lower hammer pressure ;
4.Valve following road is smooth and less fluid resistance ;
5.Nice sealing performance etc.
Details Introduce:
Design According to API 594
Face to face according to API594
Pressure & Temperature Rating according to ASME B16.34
Test & inspection According to API 598
Materials:WCB CF8M (SS316), CF8 (SS304), DIN4.4408/4.4308 Available
Working Pressure: 150LB-900LB
Size:1/2"-8"(DN15 ~ DN200)
Suitable Temp.: -196ºC~550ºC( Different temp. for different material)
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Drawing:
Product Show:
