X5032 X5040 Worktable Conventional Vertical Universal Metal Manual Milling Machine
| US$14,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X5032
Object
Hardware
Structure
Lifts
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
320*1325mm
T-Slots(No./Width/Pitch)
3/18/70
Longitudinal Travel(Manual/Auto)
700/680mm
Cross Travel(Manual/Auto)
255/240mm
Vertical Travel(Manual/Auto)
350/380mm
Spindle Travel
70mm
Max Load
600kg
Rapid Feed Speed
2300/1540/770 mm/Min
Main Motor Power
7.5kw
Spindle Taper
7:24 ISO50
Spindle Speed Range
30~1500rpm
Spindle Speed Step
18steps
Max.Swivel Angle of Vertical Milling Hea
+-45deg
Overall Dimensions(L*W*H)
2300*1770*1900mm
Net Weight
2900kg
Transport Package
Wooden Case
Specification
13cbm
Trademark
BST
Origin
China
HS Code
8459590000
Production Capacity
1000/Year
Packaging & Delivery
Package Size
240.00cm * 188.00cm * 210.00cm
Package Gross Weight
3100.000kg
Product Description
Product DescriptionVertical lifting platform milling machine is a kind of general metal cutting machine tool. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product Features

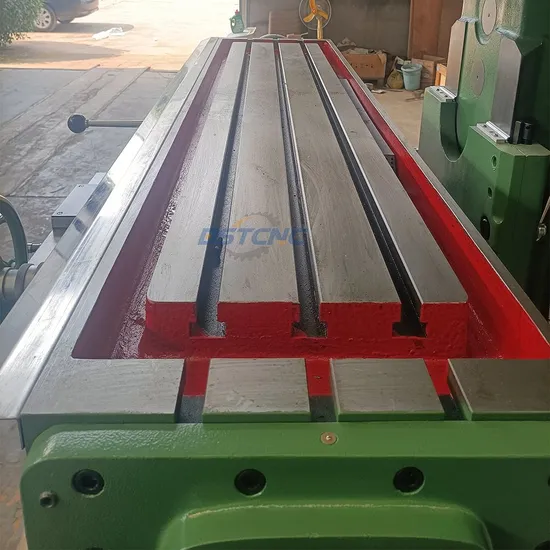

1-Using rectangular guide machine is Rigid good.2-Work table and guide rail through the ultra audio spark quenching.3-Work bench X. Y.Z are gear drive automatic feed and manual operation.4-Milling head can be rotated 45 degrees.
Product Parameters
| Specification | Unit | X5040 | X5032 |
| Table size | mm | 400*1700 | 320*1325 |
| T-slots(NO./Width/Pitch) | 3/18/90 | 3/18/70 | |
| Longitudinal travel(manual/auto) | mm | 900/880 | 700/680 |
| Cross travel(manual/auto) | mm | 315/300 | 255/240 |
| Vertical travel(manual/auto) | mm | 385/365 | 350/380 |
| Rapid feed speed | mm/min | 2300/1540/770 | 2300/1540/770 |
| Max load | kg | 800 | 600 |
| Spindle taper | 7:24 ISO50 | 7:24 ISO50 | |
| Spindle speed range | r/min | 30~1500 | 30~1500 |
| Spindle speed step | steps | 18steps | 18steps |
| Spindle travel | mm | 85 | 70 |
| Max.swivel angle of vertical milling head | ±45° | ±45° | |
| Distance between spindle nose and table surface | mm | 115/500 | 30/400 |
| Main motor Power | kw | 11 | 7.5 |
| Overall dimensions(L×W×H) | mm | 2556×2159×2258 | 2300X1770X1900 |
| Net weight | kg | 4250 | 2900 |
