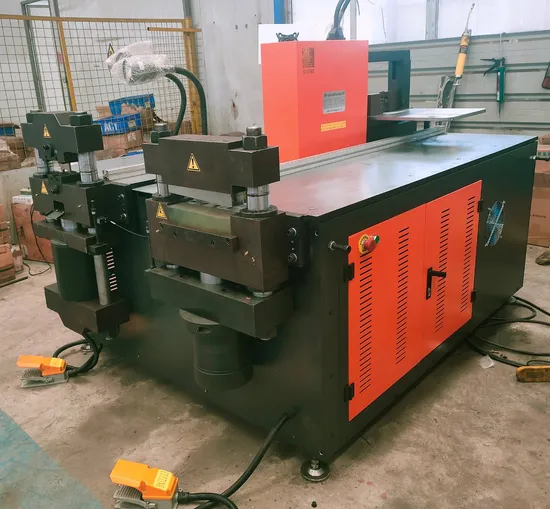

Split Busbar Hydraulic Processing Machine

Product Description

Product Description CNC busbar bending machine is the computer-controlled equipment dedicated for busbar bending, performing various bending operations through the coordination of X-axis and Yaxis movements, assisted with manual feeding. The selection of different dies can complete the plane bending, side bending and other processes of busbar. The machine can be used in combination with GJ3D software, and is able to accurately calculate the spread length of the bend. As to the frequently bent workpiece, it can automatically find the bending order to achieve programming automation, simulate the bending order to place busbar and avoid errors in determining the bending positions
Product Parameters

Item	Unit	Parameter
Nominal Force	KN	600
Bender Accuracy	Degree	±0.2
Max Bending Stroke	mm	250
Automatic Stroke	mm	1000
Max Motion Speed of Side Striker (X Axis)	m/min	15
Bending Head (Y Axis)	m/min	Fast: 5; Low: 1.25
Min Inner Width of U-shape Bend	mm	40 (Note:Please consult us for smaller dimensions)
Max Bending Angle	degree	90
Level Bending (W*H)	mm	200 × 16 (Customerized 260x20mm)
Total Power	kw	7.2
Main Machine Dimension: L*W	MM	1500x1200x1200
TOTAL Weight	kg	2000kg

Detailed Photos

Automatic Bending Gauge

Siemens PLC and SERVO Control

Windows All in One Touch Screen Computer First 3D Busbar Design Software which can read CAD or Solid work drawings and Do Bending from your Drawing Directly!

Wifi and ready for your Industry 4.0

Greatly Save and Benefit Customer

Installation Instructions

Whole-Installed Shipment

Packaging & Shipping

Certifications
Our service
--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D team and strict & scientific management system.
