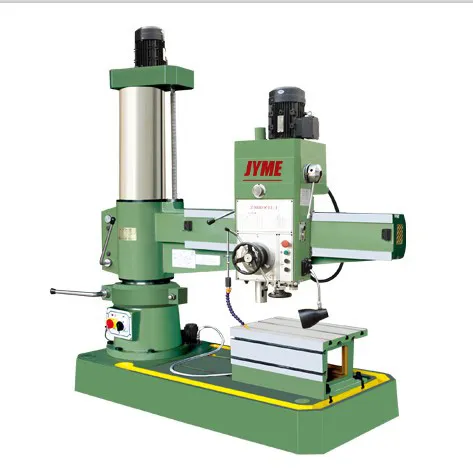

Z3040X14-1, Z3040X11-1 China Radial Drilling Machine Vertical

Product Description

Introduction of Radial drilling machine: Z3040 radial drilling machine has a maximum drilling diameter of 40mm, which can be used for drilling metal materials. It can also be used for various forms of machining, such as reaming, reaming, tapping and scraping the end face. According to the clamping structure of machine tools, it can be divided into hydraulic rocker arm drilling machine and mechanical rocker arm drilling machine. Rocker arm drilling machine is easy to operate, flexible, wide range of application, especially suitable for single or batch production with large-scale porous parts of the hole processing, is a common machine shop equipment.
Main Features: 1. Appearance modeling beautiful, overall distribution of symmetry coordination.
2. Mechanical transmission,Hydraulic transmission,Mechanical speed,Automatic take-off and landing ,Automatic feed 3. Adopt mechanical variable speed, simple operation. 4. Reliable structure, fine workmanship, to ensure the durability of the machine tool accuracy. 5. Electrical machinery double insurance, safe and reliable. 6. Auto-Feeding.
7.The transmission system of the spindle box adopts the ultra-audio frequency quenching gear, and uses the numerical control worm gear grinding machine to grind the teeth, which has the advantages of wear resistance, high hardness and low noise.
Parameters:

SPECIFICATIONS	Z3040X14/I	Z3040X11/I
Max. drilling dia(mm)	40	40
Spindle center to column generating distance	370-1370	350-1030
Distance headstock horizontal movement(mm)	1000	670
Distance from spindle nose to table surface(mm)	280-1210	170-1100
Rocker lifting distance(mm)	680	680
Rocker Lifting speed (m/min)	1.32	1.32
Rocker rotary angle	±90°	±90°
Spindle taper	4	4
Range of spindle speeds(r.p.m)	40-1896	40-1896
Spindle speed series	12	12
Spinde feeding range(r.p.m)	0.13-0.54	0.13-0.54
Spinde feeding step	4	4
Spindle travel (mm)	260	260
Maximum allowable torque of spindle (N.m)	200	200
Maximum resistance to the spindle(N)	10000	10000
Main motor power (kw)	3	3
Machine weight	2200	1600
Overall dimensions(mm)	2053x820x2483	1655x720x2200
