50kg LPG Tank

Product Description

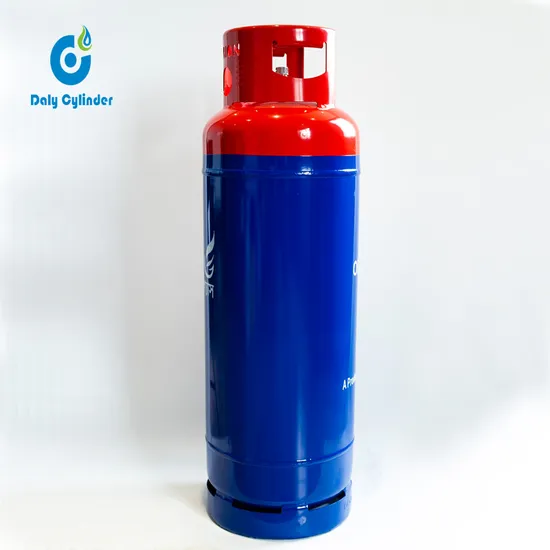

50KG 118L LPG Gas Cylinder LPG Gas Tank

Product Name	Daly LPG Bottle for Kitchen Cooking
Standard	ISO4706, EN1442 or TUV
Cylinder Material	GB6853 Steel Grade HP295 or Equivalent
Test Pressure	34 Bars
Work Pressure	17 Bars
Blasting Pressure	60 Bars
Cylinder Wall Thickness	About 3.4MM
Tare weight	44.5±0.5KG
Valve	Optional
Relevant Products	Low pressure regulator, PVC hose, gas stove, cast iron stove

Welding Process As Following:
Circumferential: Automatic Gas Metal Arc Welding, Shielding CO2+Ar
Spud/Bung: Automatic Gas Metal Arc Welding, Shielding CO2+Ar
Heat Treatment: Stress Relieved At 650±20°-11 Minutes
Surface Treatment: Abrasive Blasting With Cleaning Sa2.5 Class Painting
Painting: 1 Coat Power Paint 50-120 Microns or 2 Coats Stoving Alkyd Paint 50-120 Microns
Cylinder Color: Blue
Printing: According to Client's Content With White Color

LPG-50KG
Water Capacity	High total(mm)	BOTTLE		GUARDED		BASE
		In diameter (mm)	High	Outside diameter(mm)	High	Outside diameter(mm)	High
108L	1114	φ400	640	240	150	φ400	120

Daly, one of the largest LPG Cylinders in China, was founded in 1981. Daly is the Deputy Director Unit of The China Gas Association involved in the formulation and modification of Chinese National Standard in LPG industry. Today Daly is able to produce over 5 million cylinders yearly and has with excellent reputation for LPG cylinders and export the products to Europe, Africa, Southeast Asia, South America and etc. Our products cover the whole range of LPG cylinders, range from 3kg, 5kg, 6kg, 10kg, 12.5kg to 60kg and comply with different standards, like ISO4706/EN1442/GB5842/DOT4BA and etc.

Exhibition

Hubei Daly LPG Cylinder manufacturer, we are NO 3 LPG Cylinder manufacturer in China.
Our product is in millions Chinese family which is safe and strong. In China,
only few manufacturers have the permit to make the LPG Cylinder, we are one of them.


OUR FAQ

Question 1. How to ensure your cylinders quality?
A: Our factory was founded in 1981, we have ISO9001, BV, CE, and approved by the Administration of quality of supervision, Inspection and Quarantine (AQSIQ) of China. Dali is an appointed manufacturer of LPG cylinders and pressure vessels. Moreover, Dali is a deputy director's unit of the China Association-Professional Committee of Chinese LPG cylinders.

We have 9 pressure vessel production lines, which are of the most advanced technology in the industry and furnished with early 400 machinery and equipment (including advanced x-ray real-time Image Inspection System, Spectrum Analyzer, and other inspection equipment).

Question 2 What's your production capacity?
A: We have 9 production lines, in full production capacity, we can supply 5 million cylinders annually / 400,000 cylinders per month.

Question 3. What's Daly Main Sales Products?
A: We mainly supply LPG cylinder, valve and other parts of cylinder.

Question 4. How about the sample?
A: In our acceptable range, we can offer a sample by charging freight, and we will return the fee to your after you make an order.

Question 5. How about the payment and delivery time?
A: The payment term: 30% for deposit, balance copy of BL; L/C at sight.

Question 6. How do you make our long-term business and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers' benefit.
2. We will have professional engineers and advanced production equipment, will offer you as much support as we can to help you occupy more market.
