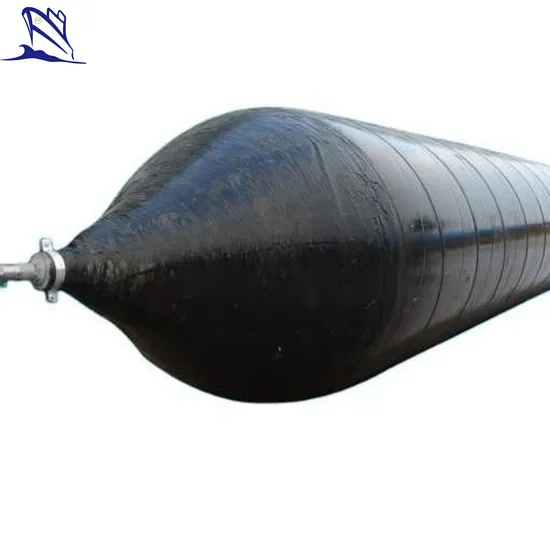

Customeried High Quality Marine Pontoon Salvage Launching Airbag

Customeried High Quality Marine Pontoon Salvage Launching Airbag

US$1,000.00-3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TH-PSLA1
Application
Salvaging, Ship Launching And Ashoring, Cargo Carrying, Boat Launching
Customized
Customized
Condition
New
Diameter
From 0.8m to 2.5m
Effective Length
From 6m to 25m
Total Length
From 7m to 28m
Transport Package
Wooden Case
Specification
rubber
Trademark
Taihang
Origin
Zhejiang Province, China
Production Capacity
8000piece/Year

Product Description

Product Description Specification Form of Airbag:


1> Diameter (D) : From 0.8m to 2.5m.

2> Effective Length (EL) : From 6m to 25m.

3> Total Length (TL) : From 7m to 28m.

4> Other specification of ship launching airbags also available upon customer's request

Besides,we can according to your ship information provide you the most suitable size, etc.


DIAMETER
WORKING PRESSURE
WORKING HIGHT
GUARANTEED BEARING CAPACITY PER UNIT LENGTH
KN/m
T/M
Lb/ft


D=1.2m
(D=3.94FT)


0.17Mpa
(24.66psi)
0.7m(2.296ft)
133.61
13.62
9154
0.6m(1.968ft)
160.30
16.34
10983
0.5m(1.640ft)
187.08
19.07
12818
0.4m(1.312ft)
213.76
21.79
14646
0.3m(0.984ft)
240.44
24.51
16474
0.2m(0.656ft)
267.22
27.24
18309



D=1.5m
(D=4.92ft)



0.13Mpa
(18.85psi)
0.9m(2.952ft)
122.63
12.50
8402
0.8m(2.624ft)
143.03
14.58
9800
0.7m(2.296ft)
163.43
16.66
11198
0.6m(1.968ft)
183.94
18.75
12602
0.5m(1.640ft)
204.34
20.83
14000
0.4m(1.312ft)
224.75
22.91
15398
0.3m(0.984ft)
245.15
24.99
16797


D=1.8m
(D=5.90ft)


0.11Mpa
(15.95psi)
1.1m(3.608ft)
120.96
12.33
8287
1.0m(3.280ft)
138.22
14.09
9470
0.9m(2.952ft)
155.59
15.86
10660
0.8m(2.624ft)
172.85
17.62
11843
0.7m(2.296ft)
190.22
19.39
13033
0.6m(1.968ft)
207.48
21.15
14216
0.5m(1.640ft)
224.75
22.91
15398
0.4m(1.312ft)
242.01
24.67
16581
0.3m(0.984ft)
259.38
26.44
17771
0.2m(o.656ft)
276.64
28.20
18954
NOTE : THE ABOVE VALLUE IS FOR REFERENCE ONLY . IT IS SUBJECT TO CHANGE IN ACCORDANCE WITH ACTUAL AIRBAG SYSTEM DESIGN .
YOU CAN CHOOSE THE REQUIRED OF SHIPS AND BOATS OF ALL SIZES. WE WILL MEET YOUR PROJECTS/SUPPLIED UPON CLIENTS REQUEST .
Detailed Photos
Our Advantages 1.Our Shipyard:Ningbo Zhenhe shipyard, and now Taihang is the branch representative of our yard.2.Our founding team has experience of more than 15 years in ship building and ship repair with our own engineer and designer.3.Equipment quality guarantee: Based on shipyard feedback, we built up manufacturer file to ensure the good quality of the products. Also we can send our engineers to help our clients to install and test these exported equipment.4.We are a second hand ship broker to help you find the satisfied used different kind vessels.5.We are able to provide the CKD kits and one-stop service based on our laser-cutting machine and purchase ability6.We have a very professional design and technical team to work out perfect plan for our clients and help to slove out any matters with pre-sale and after-sale.7.Customer Distribution: Tananzia, Rwanda, India(Mumbai and Kalkatta), Suva, Portugal, Russia, Nertherland, Iceland, Denmark, Malaysia, Mexico.......
