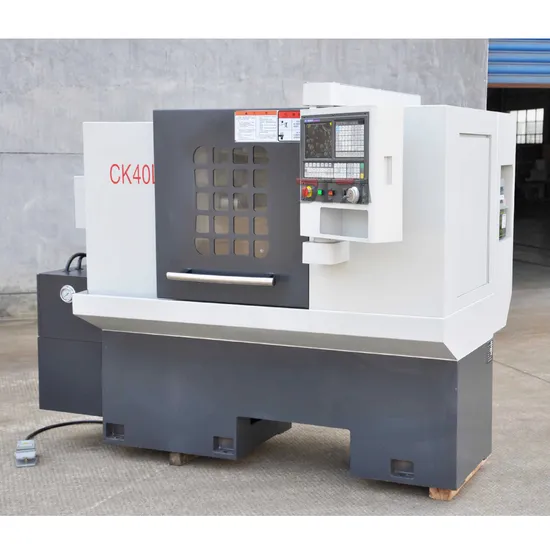

Gang Type Tool Post 3.7kw 52mm Spindle Flat Bed CNC Lathe Ck6140L
Basic Info.
Model NO.
CK6140L
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Flat Bed CNC Lathe Ck6140L
Model
Ck6140L
CNC Controller
GSK/Siemens/Fanuc CNC Controller
Max.Swing Over Bed
400mm
Max. Turning Length
300mm
Spindle Bore Diameter
52mm
Chuck
Manual Chuck
Tool Turret
4-Way Toolpost
Delivery Time
2 Month
Warranty Time
12 Months
Guideway
Linear Guideway
Main Motor
3.7kw Servo Motor
Voltage
380V
Transport Package
Wooden Case
Specification
300mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Product Description
Gang Type Tool Post 3.7kw 52mm Spindle Flat Bed CNC Lathe CK6140LStandard accessories:
GSK980TDi CNC cnc controller
GSK servo motors for X and Z
GSK servo mian motor for spindle
Linear guide ways for X and Z
Lead screw for X and Z
Gang type tool post
Manual chuck
Lubrication and coolant system
Heat exchanger
Full cover
Tool box
Optional accessories:
Siemens/Fanuc CNC controller,
Hydraulic chuck,
Pneumatic collect,
6-station turret
| MODELS | CK6140L |
| Max swing over bed | Ф400mm |
| Max. turning dia. for axle parts with gang tools | Ф150mm |
| Max. turning length | 300mm |
| Spindle nose | A2-5 |
| Spindle bore | Ф52mm |
| Taper bore of spindle | M.T.NO.6 |
| Steps of spindle speed (manual) | Stepless |
| Max.spindle speed | 3000rpm |
| X-axis rapid feed | 16m/min |
| Z-axis rapid feed | 20m/min |
| X-axis travel | 215mm |
| Z-axis travel | 300mm |
| Min. input | 0.001mm |
| Tool post type | Gang tools |
| Tool cross section | 20×20mm |
| Round hole cutter holder size | Ф25mm |
| Main motor power | 3.7kw |
| Coolant pump power | 75w |
| Overall dimensions(L×W×H) | 1700×1500×1600mm |
| Net weight | 1700kg |
