1300X2500mm CNC Machine for Wood Acrylic MDF EVA

Product Description

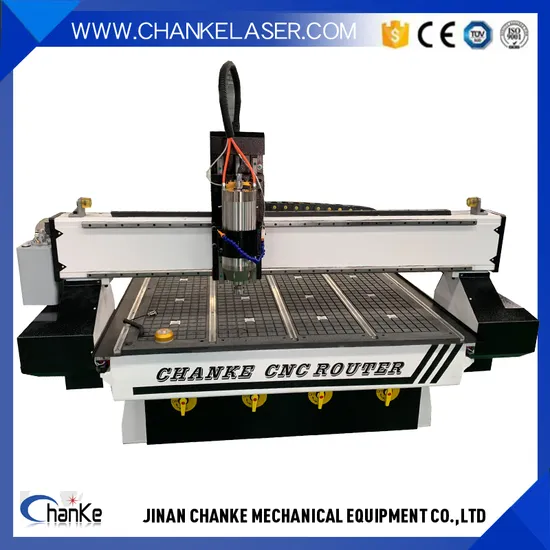

This machine is chanke company's vacuum table machine. It working size is: 1300x2500x200mm, vacuum table, using the vacuum pump to absorb the mould on the table, it is convenience for our users is don't need the materials holders, put the mould on the table , open the vacuum pump , then can working , but it has one point that not absorb the irregular , out of faltness mould , 3D embossment. This vacuum table machine fit for the users who has the large volume productions, it can improve the working efficiency, it is save the time and labor than the aluminium profile wood cnc router.

But aluminium profile wood working machine can work on the 3D embossment and the irregular , out of faltness mould.

So welcome to contact us when you need wood working machines on the wooden , MDF doors or the furniture....

Forget to tell you, we can according to your requipments to produce the wood cnc router machine, like the working size, the colour of this machine, using which size of driving motor.... so don't hesitate contact us !
Product discription

1)Adopt imported square guide rail ,double row slide block and the imported ball screw makes the machine working steadily, high precision and long life time.
2)With advanced DSP system,operated with the USB handle ,convenient operation ,humanization design.
3)Compatible with Type3/ artcam/castmate/proe/coreldraw/wentai and other CAD/CAM software
4)Vacuum table with six vacuum zones ,which can absorb different size materials.No oil vacuum pump ,high suction,more convenient,stable capability.
5)Adopt high speed stepper motor and drivers and two motors for the Y axis,max speed can reach to 35m/min,auto aligning system.

Applicable industry

Woodworking industry ,3D wave board processing,Cupboard doors,craft wooden doors,unpainting door,screen,crafts windows,milling and engraving on the furniture.

Applicable materials

MDF,wooden plate,veneer,wood ,application,PVC.

Model	CK1325 MDF cnc router
Working size	1300*2500mm
Z working travel	120-450mm
Working precision	+-0.04mm
Table structure	Vacuum table
Location precision	+-0.05mm
Power consumable	3KW
Max idle speed	50000mm/min
Max working speed	25000mm/min
Spindle power	2.2KW-9.0KWor HSD for choice
Spindle rotate speed	0-24000 r/min
Working mode	Step motor ,option servo motor
Working Voltage	AC380V/50HZ, AC380V/60HZ
Run command	G Code ,UOO file

Our service
we are factory manufacturer, so the quality of every parts of our products is monitered by our experienced technicians, we have confidence that our product will make you find a ready market. And we can also make special machines according to your detail needs. Moreover, our technicians can speak English, they can slove your problems directly in English.

1) The machine guarantee is 18 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.

All laser engraving machine are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.

The advantages of plywood case package:

Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.

Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.

Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.


Guarantee & After Sales Service
1. For the whole machine we give the warranty for 2 years.
2. For the RECI laser tubes,we give the warranty for 9 months.
3.For the focus lens and mirrors, we will give the warranty for 9 months too.
4.Any parts is broken during the warranty period( without human damage),we will change for you for free within2 years .
5.Engineer can go to your country to provide the technical support. and 24 hours after sale service worker is online.
Professional Service
From producing in our factory to shipping the goods directly to your port or company, we supply all-in-one service for our customers. With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the quick leading time. No matter your quantity is our MOQ or very big, we take each customer as the only one.


FAQ
Question 1: How long about the machine's guarantee?
Answer: 2 year
Question 2: How about your after service?
Answer: Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer: Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer: 30% T/T for deposit, 70%T/T paid before shipping.
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
