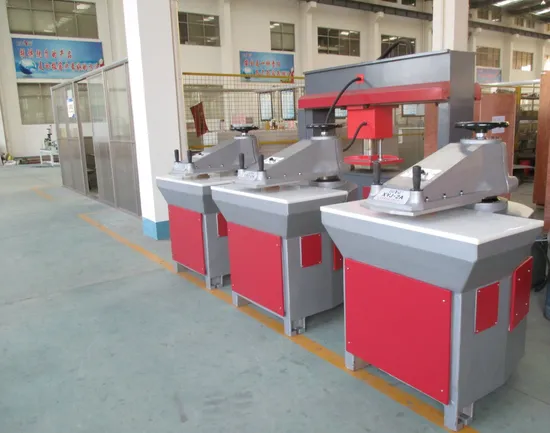

Hydraulic Swing Arm Clicker Press

Product Description

Hydraulic Swing Arm Clicker Press
USE AND CHARACTERS
The machine is suitable for cutting various materials such as leather, plastic, cloth, leather bags, toys, caps, foam sheets, floor materials, soft wood sheets and etc. by die cutter.
1.The swing arm can sway flexibly with excellent operating visual field, so it is especially suitable for cutting genuine leather materials.
2.The switch for operation with both hands ensures the safety of operators.
3.The column is provided with self-lubricating system without the need of manual lubricating, which enhances the service life of machine.
4.The hydraulic system is operated under the closed environment, so the machine can work under general working conditions.
TECHNICAL SPECIFICATION

Maximum cutting force	250kN/25Tons
Travel adjustment range	0-75mm
Range between the working tables	65-150mm
Size of the upper pressing board	450× 500mm
Size of lower worktable	1000× 500mm
Motor power	1.5kW
Overall dimension	1080× 1080× 1600mm
Net weight	1050kgs
Gross weight	1150kgs
Machine Color	grey& red or as optional
Electronic supply	50hz or 60hz , single phase or three phase 220v /380V /440v
Machine logo	CHAOYING or Customized
OEM	Yes
Package	Standard export wooden box

The die cutter :
Factory views :
Certificates :
Attending Fairs :
Customers' visiting
The FAQS.
1) Are you the factory or trading company?
We are the manufacting factory
2) What is your MOQ of your Product?
Normally our MOQ is 1 set
3) Do you have any certification on your product?
We have CE,SGS , ISO approved for our product
4) What is your main market for the overseas?
Our mainly exported to India,Pakistan , USA , UK , Italy and so on
5) What is the warranty of your product?
We have 1 years warranty
