High Quality Steel Wire Braided SAE 100r2at Hydraulic Hose

Product Description

Product Description
High Quality Steel Wire Braided SAE 100R2AT Hydraulic Hose

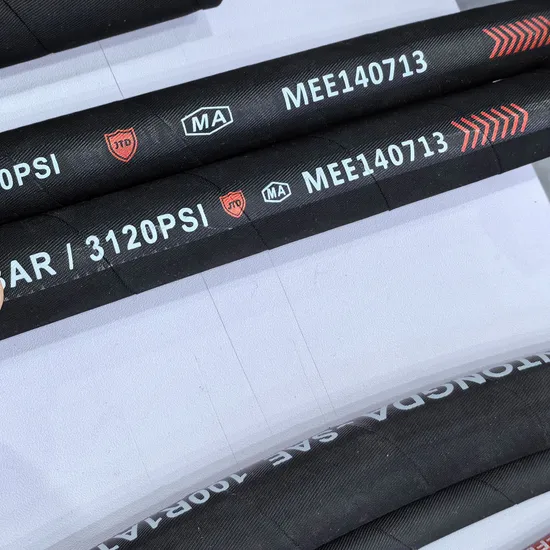

Product Images
Our Strength:
1.We have 26 high-speed automatic braiding machines, monthly output up to 600,000 meters.
2.Only produce high quality products with very competitive prices
3.Faster Delivery based on mass production workshop and a lot of raw materials
4.Professional, Prompt sales team and After-sale Service
Product Application
Tube: Oil Resistant Synthetic rubber
Reinforcement: One braid of high-tensile steel wire
Cover: Smooth/Wrapped
Temperature Range: -40ºC~+100ºC
Product Parameters SAE J517 R1AT

DN	Hose I.D		Braids O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	Inch	MM	MM	MM	Bar	Psi	Bar	Psi	MM	Kg/m	Meter
5	3/16	4.6	10.6-11.7	13.3-14.1	415	6020	1650	23295	90	0.32	50/100
6	1/4	6.2	12.5-13.1	14.4-15.2	400	5800	1600	23200	100	0.36	50/100
8	5/16	7.7	14.2-14.8	16.3-17.1	350	5075	1400	20300	115	0.45	50/100
10	3/8	9.3	16.2-16.8	18.3-19.1	330	4785	1320	19140	130	0.53	50/100
13	1/2	12.3	19.4-20.1	21.5-22.3	275	3990	1100	15950	180	0.66	50/100
16	5/8	15.5	22.8-23.4	25.0-25.8	250	3625	1000	14500	200	0.78	50/100
19	3/4	18.6	26.4-27.2	28.6-29.4	215	3120	850	12325	240	0.96	50/100
25	1	25.0	33.9-34.7	36.5-37.1	165	2390	650	9425	300	1.35	50/100
31	1-1/4	31.4	42.8-43.6	45.3-46.1	125	1810	500	7250	420	1.70	20/40
38	1-1/2	37.7	49.2-50.0	51.7-52.5	90	1305	360	5220	500	2.35	20/40
51	2	50.4	61.9-62.7	64.4-65.2	80	1160	320	4640	630	3.00	20/40

Company Profile
JUYE JINTONGDA PIPE INDUSTRY CO., Ltd is a professional manufacturer of hydraulic hose and industrial hose with various specifications from 1999. We integrates the Research&Development, Production, Sales Export and focus on the high quality products all the time.
Our company is registered with 21 million RMB capital, covering an area of 30,000 square meters. We are located in the alluvial plain of the Yellow River, with developed transportation and convenient logistics.
We specialize in production and sales of hydraulic hose, now we mainly produce 1SN, 2SN, 4SP and 4SH products in compliance with American standards of SAEJ517 and European standards of DIN.Our annual production capability is 10 million meters around (cloth hose 4million and smooth hose 6million). We use automatic high speed braiding machine and advanced quality management system to ensure the reliability and stability of the products. We have strict ISO quality control system and after-sales service system as well. Each batch of goods will do burst pressure tests and impulse tests before leaving factory.
Welcome customers domestic and abroad to visit and negotiate with JINTONGDA, we will serve you wholeheartedly. Sincerely awaiting for your visit!

Certifications
Exhibition Show

Transport Packages
FAQ
Q1.What is your terms of payment?
A: T/T 30% in advance, and the balance by the copy of BL.
Q2. What is your terms of delivery?
A: FOB, CIF, EXW, CFR, etc.
Q3. How about your delivery time?
A: Generally, 15 days for 1x20'GP, 25 days for 1x40'GP. The specific delivery time depends on the items and quantity of your order.
Q4. What is your MOQ?
A: Usually 500meters each size, and we can also accept the trial order. However, addional packing and operating cost maybe charged if delivered in LCL shipment.
Q5. Do you test all your goods before delivery?
A: Yes of course, we have 100% burst pressure test and impulse tests before delivery.
