Intelligent X Ray ASTM D4294 Fuel Sulfur Analyzer Sulphur Tester Sulphur Test Machine

Product Description

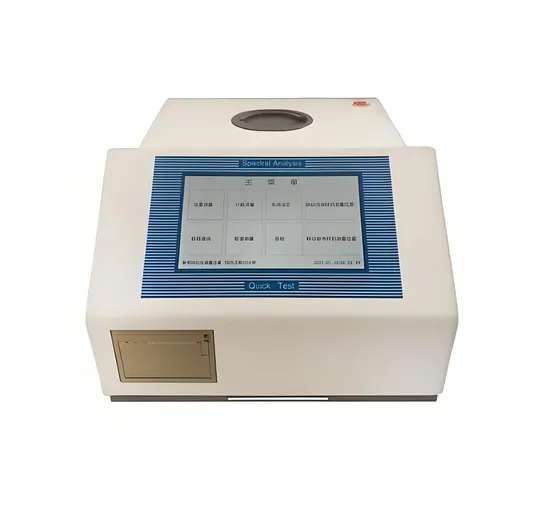

X Ray ASTM D4294 Intelligent Fuel Sulphur Analyzer(SP-4294)
Product Description
X-ray fluorescence sulfur analyzer is a new type of computerized quantitative analysis instrument. Based on the principle of X-ray fluorescence energy dispersion, it adopts environmentally friendly X-ray tube excitation technology, and is an advanced physical measurement method analysis instrument composed of nuclear electronics and microcomputers. It does not require any chemical reagents for detection, and is more accurate and faster than chemical analysis. It can detect the sulfur content in liquid and solid powder samples in as fast as 30 seconds.
Main uses:
1. Measure the total sulfur mass percentage content in liquid samples such as crude oil, heavy oil, diesel, kerosene, gasoline, naphtha, etc.;
2. Measure the sulfur content in solid powder samples, such as anode carbon blocks, petroleum coke, modified asphalt and other carbon materials;
3. Measure the total sulfur or sulfide content in lubricating oil and petroleum additives;
4. Measure the total sulfur or sulfide content in other liquids and solids.
Instrument features
1. The instrument automatically selects the working curve, and there is no need to manually select the working curve of the corresponding range according to the sulfur content.
2. After long-term use, the spectrum peak drifts, and the instrument can automatically stabilize the spectrum and peak and adjust through the instrument screen membrane, and the user no longer needs to open the outer cover to adjust.
3. The instrument has two power supply modes of AC 220V/DC 12V for users to choose, which is convenient for customers to use in the field.
4. The core of the instrument is like a computer. It can expand functions according to the special needs of different users and realize remote upgrades through the USB port of the instrument.
5. The unique mechanical structure design makes the inlet and outlet sample delivery operation almost silent.
Product Parameters

Sulfur measurement range	7ppm ~ 5%; the applicable content range to be measured can also be adjusted according to user requirements.
Sample volume	2 ~ 3ml; 11 standard samples.
Single measurement time	30, 60, 120, 240, 480 seconds, arbitrarily set;
Number of measurements	2, 3, 5, 10, 50 times, arbitrarily set, the average value and standard deviation are given at the end of the measurement;
Precision	a Repeatability (r)
Number of working curves	The instrument can store 15 calibration curves, 10 of which are linear straight lines and 5 are binomial parabolas;
Power supply	AC220V, 50Hz or DC 12v (optional)
Dimensions	380*300*200mm; weight <10 kg

Detailed Photos
Company Profile Located in Chongqing (one of the four municipalities directly under the Central Government of China), the electromechanical manufacturing center in Southwest of China. We specialize in the research, development, production and sales of oil filtration equipment, oil analyzers and electrical testing equipment
With 15 years of industry experience, we possess an independent R&D center and a complete technology-production-quality control system to ensure that products meet customers' requirements. The products are widely used in manufacturing, energy, transportation, construction and other industries, serving equipment maintenance and quality inspection scenarios. Up till now, we have established long-term cooperation with domestic and foreign customers in more than 100 countries.
Certifications
Packaging & Shipping
