Grain De-Stone Sesame De-Stone Machine

Grain De-Stone Sesame De-Stone Machine

US$4,000.00 1 Set (MOQ)

Basic Info.

Model NO.
5QS-5
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw, Removing Stones
Power Source
Electric
Harvest method
Vibration fall
Drive Type
Vee belt
Color
Blue
Condition
New
Application Field
Agriculture
Warranty
One Year
Weight
950kg
Capacity
5t/H
Lengh
1600
Height
1800
Transport Package
Nude or Wooden Box
Specification
5QS-5
Trademark
BEIBU
Origin
Shijiazhuang, China
HS Code
8437109000
Production Capacity
200sets/Year

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 170.00cm
Package Gross Weight
800.000kg

Product Description

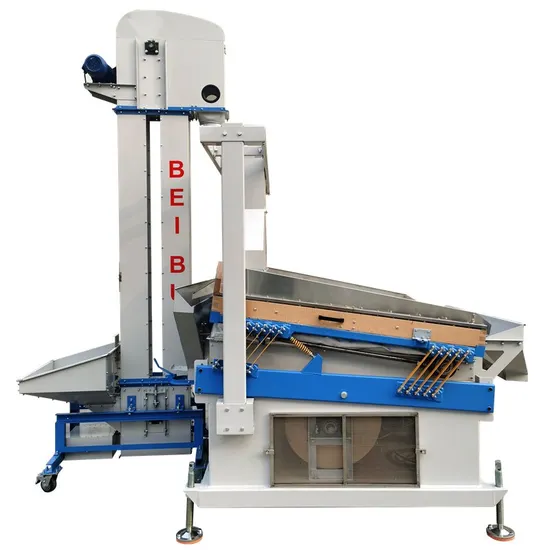

Seeds De-stoner
Product Description
•It can clean most grain seeds and remove stones and soil; as well as some granular materials, remove heavier impurities; •The countertop is made of 304 food-grade stainless steel braided mesh to extend the service life; •The stone outlet adopts the back-blowing function to effectively reduce the material in the stone being brought out; •The sheet metal parts of the equipment are cut by laser to ensure accuracy. Working Principle
•Blowing type De-stoner will remove the stones and other heavy impurities;
•The raw material will deliver to the De-stoner by elevator,then the material will evenly scattered on the De-stoner table,with the fan motor under the table blow up the wind and the vibration of machine,the stones and other heavy impurities will climb up and the material will go down to the final product outlet.
•De-stoner capacity which is 3t/h based sesame and the machine got two types based on the different capacity.
Machine Structure

Machine Instructure
Product Parameters

Model
 5QS-5
 5QS-10
Table Size
 1600mm*1600mm
 2300mm*1600mm
Power(kw)
 Fan motor:5.5KW
Vibration motor:0.75KW
Total in 6.25KW
 Fan motor:7.5KWVibration motor:1.1KWTotal in 8.6KW
Capacity(t/h)
 5t/h based on beans
 10t/h based on wheat
Weight(kg)
 950kg
 1300kg
Overall Size L×W×H(mm)
 2300mm*1660mm*1600mm
 2300*2290mm*1600mm
Voltage
 380V,50HZ
 380V,50HZ

Cleaning Result
Machine Loading Picture
Installation Warehouse
