Zmde Top Trending Industrial High Precision and High Processing Speed Metal Sheets Steel Plate Drilling Machine for Heavy-Duty Steel H Beam Processing Tasks

Product Description

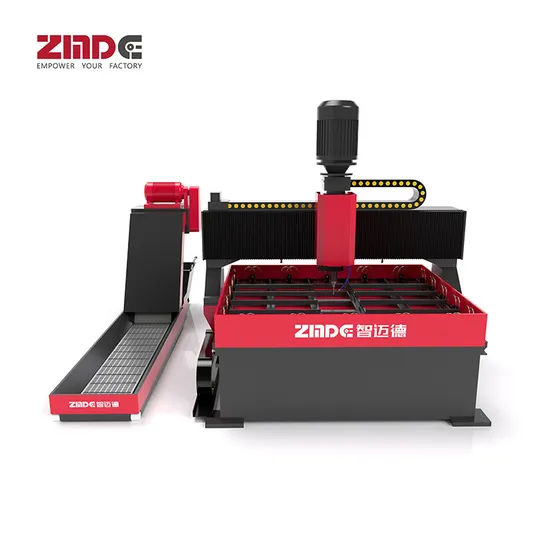

Zmde Top Trending Industrial High Precision and High Processing Speed Metal Sheets Steel Plate Drilling Machine for Heavy-Duty Steel H Beam Processing Tasks
---------------------------------------------------------------

>Experience unparalleled cost-efficiency with our state-of-the-art equipment.
1. Constructed with robust materials and featuring a low failure rate, our equipment significantly reduces maintenance costs. We incorporate top-tier brand products for components like ball screws, linear guides, hydraulic parts, electrical parts, servo motors, and frequency converters.
2. The CRT display enables automatic chip removal, saving valuable time and reducing manual cleaning costs.
3. Our equipment boasts high precision, ensuring a high qualification rate for workpieces and lowering consumable costs.
>Unmatched simplicity in operation combined with high productivity.
1. Featuring a human-machine interface that is clear and visual, this machine generates automatic machining programs effortlessly.
2. Controlled meticulously by CNC and PLC systems for accurate positioning.
3. Workpieces are securely clamped by hydraulic clamps, with operator control via a convenient foot switch, enhancing labor efficiency.
4. The machine boasts 12 rapid hydraulic clamps distributed around the table, allowing simultaneous clamping of four workpiece groups.
5. Small workpieces can be clamped at the four corners of the working table, significantly reducing the production preparation cycle and boosting efficiency.
6. By clamping small workpieces at the table's corners, the machine markedly shortens the prep period and heightens production efficiency.
> Guaranteed quality and a broad spectrum of applications.
1. Crucial components such as the gantry, column, and table are built from solid materials, with the main machine weighing up to 6300kg.
2. The machine serves a wide array of industries and is essential for connecting plate processing.
3. Accommodates a vast range of drilling diameters, from 12 to 50mm.
> Perfectly suited for varied production scenarios.
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Capable of handling small batch production of various workpiece types, processing plates in shapes such as rectangular, round flange, and polygonal. It can simultaneously process two or four plates of different specifications.
3. Stack production of multiple layers of thinner sheets, with a maximum stacking height of 100mm for drilled holes.
4. Using upper computer software, it can automatically determine processing start and end points, capable of drilling through holes as well as blind holes, step holes, and chamfering hole ends.
> Embrace the future with automated production processes.
1. The integrated line board offers a high degree of automation, automatically positioning according to the drilling program.
2. It adjusts the optimal feeding volume based on different hole diameters.
3. Facilitates automatic, continuous processing of large hole diameters and one-time molding.
4. Equipped with an automatic chip removal function for seamless operation.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Founded in 2013, ZMDE Co., Ltd. stands as a beacon of innovation in the realm of assembly building intelligent equipment. As a recognized high-tech enterprise and a national leader in specialization and specialty, ZMDE Co., Ltd. has earned the prestigious title of 'Small Giant'. Our core expertise lies in the development of intelligent industrial mother machines for steel structures and industry IoT solutions.Our advanced systems integrate intelligent control across two primary platforms.
Our headquarters, situated in the dynamic Lingang New Area of Pudong New District, Shanghai, spans an impressive 32,000 square meters. This hub houses the Research Institute of Artificial Intelligence for Assembled Buildings, where we spearhead management and the cutting-edge R&D of AI technologies for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, located in Weicheng District, Weifang City, is dedicated to the R&D and production of intelligent industrial mother machines for steel beams and walls of assembled buildings. This facility drives our commitment to pioneering advancements in intelligent assembly solutions.These mother machines exemplify our dedication to innovation and precision in the construction of assembled buildings.

FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)
