Laboratory Rubber Molding Machine Price for Rubber Vulcanizing

Product Description

Product Description

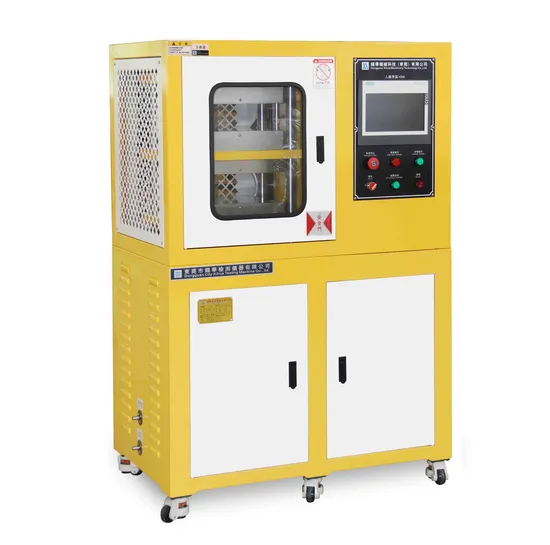

XH-406BE-30 hot pressing machine hot pressing machine/press machine/ good quality control toolis applicable to R & D in laboratory.
Put the raw materials into the mold between the electric boards and set up certain pressure and temperature.The raw materials are formed into test specimen for test use.
The machine features compact size, cmplete functions, stable temperature, low noise, easy opention and material saving.
small hydraulic press machine is major in rubber and plastic machine, you can call it hot press molding machine, if you use the machine use for rubber you may call it vulcanizing press machine, because you know that the rubber material need to add sulfrizing and if you use for plastic, call it as hot press machine.

XH-406BE-30 Technical Parameter
Capacity selection	30 ton or customize
Temperature control	normal temperature~300ºC
Precision of the control temp	+ -2ºC
Heating Mode	Electrical Heating
Timepiece	LED 0~99(min)
Area of electric board	300*300mm designated
Area of cooling plate	300*300mm designated
Cooling mode	Compressor water cooling or running water cooling
Plate spacing	0~70mm designated
Volume	1100*650*1600mm
Weight	About 750kg
Power supply	3Ø, AC380V, 20A

Small Hydraulic Press Machine Features
(1) XH-406BE-30 tablet press machine is applicable to R & D in laboratory because of its compact size, complete functions, stable temperature, low noise, easy operation and material saving.
(2) High-precision temperature sensor, together LED temperature controller, built-in dense-point heating wire and tubular condenser, has the temperature range from normal temperature to 300ºC.
(3) Imported KDB electric board features high-temperature resistance, abrasion resistance, fast thermal transmission and strenghthen against deformation.
(4) Single heating can be designed according to the requirements.
(5) Oil hydraulic system: the pressure range: 30 ton, the maximum stroke of the cylinder: 180mm.
Testing sample

Details images
