Hand-Held Walking Mini Corn Harvester Machine

Product Description

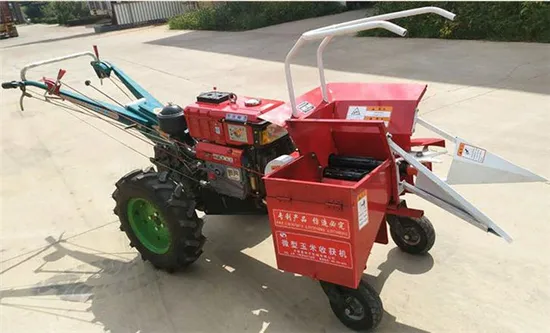

Hand-held walking mini corn harvester machine
Features
1: small size, adaptability, widely used in hills and mountains and other large corn harvesters can not pass the sporadic block
2: full-featured, picking crushed straw crushed into the field, etc., and almost the same function
and large corn harvester.
3: matching power, machine delivery.
4: easy to install and disassemble, really a car more use.
5: flexible operation, cutting crop height can be adjusted, turning radius is small

Specifications for single row corn harvester
Product name		corn harvester
Model		4YD-1
Structure(Self-propelled)		picking, non-peeling, smashing
Engine	model	ZH192
	Calibration power	≥7.35kw
	Calibration rotation	2300r/min
Working rows		1 row
Work width		500-700mm
Min ground clearance		70mm
Working speed		2km/h
Productivity		0.1-0.2h m2/h
Fuel consumption		6.5kg/h m2
Dimensions		920*670*620mm
Total Weight		90kg
Supporting power		8.82kw
Knife shaft rotation		2200r/min
Trial sentence		500-700mm
Remaining height		20-80mm
Harvest lines		1
Number of workers		1
Number of blades		24 pcs
Chopped length		20-80mm
Picking structure		Recumbent
	Picking size	L420mm H400mm
Track distance	Guide wheel	580-680mm
	Drive wheel	680-740mm
Tire specifications	Guide wheel	4.10/3.5-4mm
	Drive wheel	6.00-12mm

Pls contact with uson the right
More pictures for your reference
