Advanced SMT Stencil Etching System for Accurate Manufacturing

Product Description

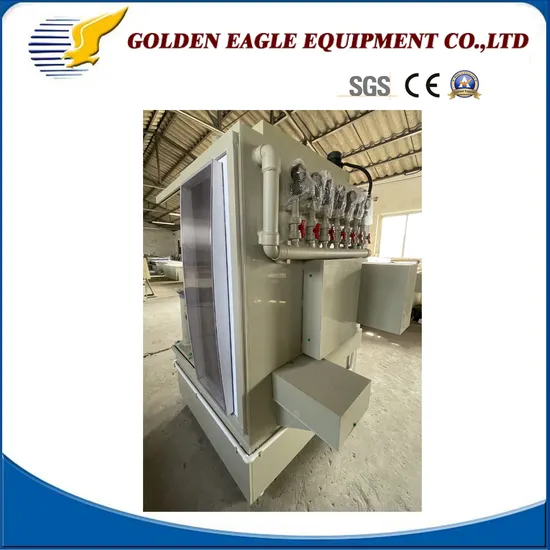

Presenting the Vertical Spray Etching Machine, expertly crafted for superior SMT Stencil etching, providing unsurpassed precision and performance.
Product Parameters

Equipment name: Vertical precision etching machine
Technical Parameter:
Machine Model:	LS650
spray system:	Vertical jet
Working Size:	650*650mm
Machining accuracy:	±0.03mm
Etching pump power:	4KW
Working pressure:	2.5-4KG (adjustable)
Cooling pipe:	PE engineering plastic 25m
Heating device:	3KW
Machine Power:	380V/50HZ/60HZ
Total Power:	8KW
Machine Size:	1400*1600*2350mm (L*W*H)
Machine Weight:	500KG

Product Description
Introduction:
Our state-of-the-art Vertical Etching Machine is an advanced photochemical etching equipment, ideal for precision engineering tasks such as machining SMT, grating, encoder masks, and a variety of high-precision components.
Equipment Description:
This versatile machine processes a range of materials including stainless steel, copper, iron, aluminum (sheet metal), steel mesh, SMT components, surface lines, and pattern etching, providing exceptional flexibility.
Constructed from innovative acid, alkali, and corrosion-resistant PP engineering materials, our double-sided metal etching machine stands out for its durability and modern design.
With a remarkable maximum temperature resistance of 100 degrees, the machine's efficiency and lifespan have been significantly enhanced, ensuring long-lasting performance.
Our machine is integrated with a stepless speed control transmission system and automatic feeding, making the etching process streamlined and efficient.
Featuring a user-friendly digital temperature control system, the machine is easy to set and automatically adjusts heating for optimal operation.
Equipped with a high-pressure liquid delivery system, it ensures fast, high-quality etching results every time.
In terms of etching effect, speed, user environment, and overall convenience, this machine surpasses traditional mechanical etching methods.
Perfect for both single and double-sided etching of decorative metal flat plates, it also excels at etching graphics, text, or creating hollow engravings with finesse.
Detailed Photos
FAQ
1.Q:Are you trading company or a factory ?
A: We are manufactory and We have import and export License .
2.Q:Where is your factory ?How Can I visit there?
A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.
3.Q:How can I get some samples ?
A: we are honores to offer you samples,please contact us anytime !
4.Q: How does your factory do regarding quality control ?
A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.
5.Q:Why us ?
A: 1. 20 years machine manufacture experiences !
2. More than 10 years good credit supplier on Made-in-China
3. satisfaction or we'll refund or rerun-your choice
4. Etching technology can be provided for free to our customer by our well-trained and professional engineers and staffs. After Sales Service
1. Fully customizable solutions tailored to your needs.
2. Comprehensive and complimentary training programs.
3. Competitive and negotiable pricing, ensuring short lead times.
Service
4. We also provide complete wet etching processes machine.
