Manufacturer! Livestock Tmr Mixer Feeder Wagons
Basic Info.
Model NO.
TMR15YZ
Processing Object
Mixed Feed
Processing Technics
Mixing-before-Crushing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Vertical Mixer
Pellet Mill Type
No Palleting
Bulking Machine Type
No
Expanding Method
No
Condition
New
Applicable Materials Shape
Silage and Grain
Warranty
1 Year
Model
Tmr15yz
Engine Power
14kw, Diesel
Mixer Volume
1.6 Cbm
Weighing System
Standard
Rotation Speed of Auger
30~45 Rpm
Transportation Speed
6.1 Kmh
Min. Turning Radius
220 Cm
Number of Wheels
3
Net Weight
1050 Kgs
Overall Dimensions (L x W x H)
280*132*195 Cm
Transport Package
Nude Packing
Specification
1.6 CBM
Trademark
SAMTRA
Origin
Shandong, China
HS Code
8436800002
Production Capacity
300/Month
Packaging & Delivery
Package Size
280.00cm * 132.00cm * 195.00cm
Package Gross Weight
1050.000kg
Product Description

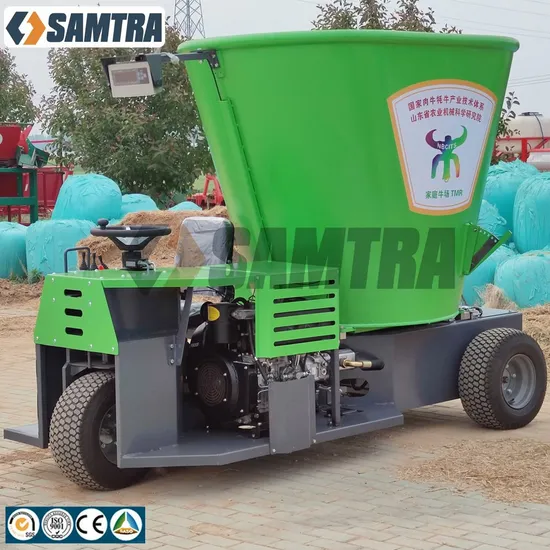

Product DescriptionSAMTRA TMR Mixer Feeder has the features of:
1. Full hydraulically drive, easy to operate, stable operation;
2. Compact structure, small turning radius;
3. Dual-speed control, high-speed transfer and low-speed operation;
4. Real-time display of material mixing weight, convenient for mixing and proportioning of total mixed ration;
5. Mixing and spreading in one time, simple operation and low operating cost;
6. Forward and backward driving, easy to observe and control the spreading situation;
7. The auger can rotate in both directions, complete unloading and less residue;
8. Suitable for farms with 20 to 100 cattle or 50 to 300 sheep.
Product Parameters
| Model | TMR15YZ |
| Engine Power | 14KW, Diesel |
| Mixer Volume | 1.6 m³ |
| Weighing System | Standard |
| Rotation Speed of Auger | 30~45 rpm |
| Transportation Speed | 6.1 kmh |
| Min. Turning Radius | 220 cm |
| Tire Model | 20x8-10 |
| Number of Wheels | 3 |
| Net Weight | 1050 kgs |
| Overall Dimensions (L x W x H) | 280*132*195 cm |
| Remarks: technical specifications and engineering designs are subject to change without further notice! | |
Detailed Photos
Weighing System Equipped
Real-time display of material mixing weight, convenient for mixing and proportioning of total mixed ratio
Diesel Engine Drive Hydraulic System
1. 14kw KAMA Diesel Engine, strong power supply
2. the hydraulic pump is imported from USA, stable hydraulic power support
Vertical Auger System
High-strength double-edge blades, wear resistant, high crushing efficiency
