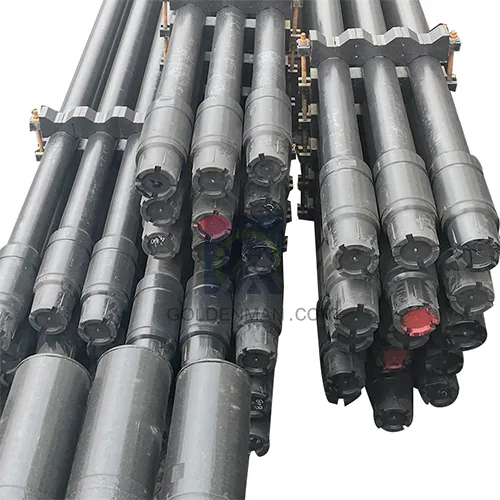

API 5dp Steel Drill Pipe Grade E75, G105, S135 Drill Rod, Oil Drilling Pipe

Product Description

China API 5DP Oilfield Drilling Seamless Pipe /heavy weight drill pipe manufacture
API 5DP oilfield drilling seamless pipe G105 NC26 2 3/8" drill pipe drill pipe comply with the provisions under the Standards API SPEC 5DP and API SPEC7. The grade of steel for the drill pipe will be determined according to the requirements of Group 1 and Group 3 of API SPEC 5DP.
(i.e.: Group 1--Grade E; Group 3--Grade X-95, Grade -G-105 and Grade -S-135)
As per requirements of customers, drill pipe joints at the same level will be provided, and manufactured drill pipe joints will comply with the provisions under the Standard API SPEC 7.
Welcome to consult, we will provide the most comprehensive technical support!

Outside Diameter, in.	Inside Diameter, in.	Connection	Tool Joint OD , in.	Tool Joint ID , in.	Center Upset Diameter, in.	Central upset dia (in)	Min. drift dia. size (in)
3-1/2	2-1/4	NC38	4-3/4 (4-7/8, 5)	2-1/4	4	4	2
	2-1/16			2-1/16			1 13/16
4	2-1/2	NC40	5-1/4	2-1/2	4-1/2	4 1/2	2 1/4
	2-9/16			2-9/16			2 5/16
4-1/2	2-11/16	NC46	6-1/4	2-11/16	5	5	2 7/16
	2-3/4			2-3/4			2 1/2
	2-13/16			2-13/16			2 9/16
5	3	NC50	6-5/8	3	5-1/2	5 1/2	2 3/4
5-1/2	3-1/4	5-1/2FH	7 (7-1/4, 7-1/2)	3-1/4	6	6	3
	3-3/8			3-3/8			3 1/8
	3-7/8			3-7/8			3 5/8
	4			4			3 3/4
6-5/8	4	6-5/8FH	8 (8-1/4, 8-1/2)	4	7-1/8	7 1/8	3 3/4
	4-1/2			4-1/2			4 1/4
	5			5			4 3/4
Weight	kg	3272	5352	1444	4328	6384
	ibs	9340	11800	3184	9522	14015
Dimensions(ODXH)	mm	1032x930	1245x1090	745x788	1135x1065	1271x1220
	in	45x42	49x43	29x31	45x42	50x48
Certification	API
TYPE	CAMERON and SHAFFER
MOQ	1 Set
