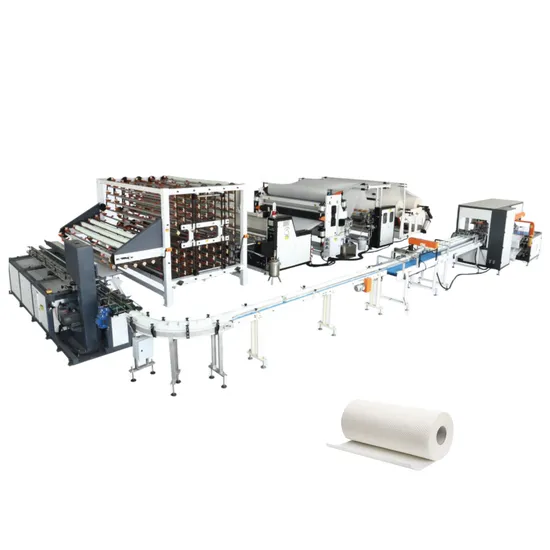

High Speed Small Toilet Tissue Paper Making Machine Kitchen Paper Towel Machine Rewinder Line

Product Description

Foshan Manufacturer Rewinder Toilet Roll Manufacturing Machinery Embossing Paper Tissue Making Machine Product Description
How to produce paper tissue products? Toilet paper, kitchen towel, industrial roll ,cotton soft roll, which machines shall be need and related material?
To produce toilet paper rolls, there are different production solution like following ~
1. Full AutoToilet Paper/Kitchen Towel Rewinder 2. Auto Accumlator (optional machine)
3. Toilet Paper cutting machine
4. Toilet Paper Packing Machine

Machine Name	Full Auto Toilet Paper Making Machine
Machine Model	1760	2200	2600	2800
Parent Paper Width	2000mm	2200mm	2600mm	2800mm
Parent Paper Dia	1500mm
Finished Products Dia	90-300mm
Finished paper core Dia	30-55mm
Back Stand	1-4 ply
Machine Speed	220-250m/min
Parameter Setting	Siemens Brand PLC computer operating system
Perforation Distance	90-200mm (4 knife)160-300mm ( 2 knife)
Driving system	Each station driving by individual motor and individual frequency converters
Machine Structure	Wallboard type
Pneumatic System	3 horse air compressor,a minimum pressure of 5kg/cm2Pa
Machine Weight	6-12 tons
Certificates	CE, ISO9001:2008, SGS
Equipped Device:
Embossing Unit	steel to rubber, individual control and driving
Glue Lamination system	dot by dot lamination, Deco embossing Lamination,

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1. The Full Automatic Toilet Paper Machines production chart:
Unwinding - Embossing -Glue Lamination-Perforating-Rewinding-Automatic core loading - Tail-gluing - Edge trimming.
2. Automatically change the paper core, also can produce toilet paper roll without roll core.
3. Automatic Tail-trimming, gluing, gluing at the same time
4.This is a great machine to make customized to produce industrial roll, kitchen towel, maxi roll and cotton soft towel on one machine.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1. Full Auto Toilet Paper Making Machine

Machine Name	Full Auto Toilet Paper Making Machine
Machine Model	1760	2200	2600	2800
Parent Paper Width	2000mm	2200mm	2600mm	2800mm
Parent Paper Dia	1500mm
Finished Products Dia	90-300mm
Finished paper core Dia	30-55mm
Back Stand	1-4 ply
Machine Speed	220-250m/min
Parameter Setting	Siemens Brand PLC computer operating system
Perforation Distance	90-200mm (4 knife)160-300mm ( 2 knife)
Driving system	Each station driving by individual motor and individual frequency converters
Machine Structure	Wallboard type
Pneumatic System	3 horse air compressor,a minimum pressure of 5kg/cm2Pa
Machine Weight	6-12 tons
Certificates	CE, ISO9001:2008, SGS
Equipped Device:
Embossing Unit	steel to rubber, individual control and driving
Glue Lamination system	dot by dot lamination, Deco embossing Lamination,

2. Full Auto Log Saw Machine
1. Full servo motor driven rotary knife to cut,reduce the deviation of materials;
2. The cutting surface is nice and neat;
3. 610mm cutting blade;
4.Mitsubishi PLC program controller;
6. Auto grinding knife cutting high precision, safe and reliable;
7. Equipped with pneumatic brake function, can prolong the service life of motor and make braking perfect;
8.Suction Device can absorb the waste produced by sharpening and discharge it out of the machine;
9.Equipped with photoelectric checking system and large diameter of spiral cutter, it can auto set the length and cut precisely;

Machine Name	Full Auto Log Saw Machine
Feeding length	2850mm
Max. Roll cutting size	100-145mm; (other sizes can be ordered), one cutting mould for ± 5mm
Horizontal cutting length	adjustable, Servo control.
Out put line	2 lines
Machine Speed	120 cuts/min * 2 rolls/cut
Function model	Spiral rotating the round blade & Continued Paper Roll Marching
Driving system	Servo motor driving
Knife grinding	Pneumatic grinding wheel, time can be controlled on panel.
Round blade outer dia	Φ610mm slitting blade (Germany brand)
Grinding wheel	Carborundum grinding wheel
Clamping tool	TWO sets of clamping tools
Frequency converter	Mitsubishi Frequency converter
PLC	Mitsubishi PLC
Motors	Servo motor
Install Power	10kw, 380V 50HZ
Certificates	CE, ISO9001:2008, SGS

3. Full Automatic Toilet Paper Bundling Packing Machine
1.This machine will used to pack toilet paper or kitchen towel into plastic bag;
2. The machine can be connected with automatic paper cutting machine to realize the automatic process of product counting, bag taking, bag filling, bag sealing and cutting;
3.The machine adopt 9 servo control, servo material sorting, servo push arm, servo pulling, servo forward, servo double lift, servo bag opening, servo sealing, servo belt, servo bag taking;
4.Adopt high-end sensor, photoelectric switch detection, fault automatic display, easy to track and maintain;
5.The machine has servo control system can go to the origin point automatically (slowly back to the origin point).

Machine Name	Full Automatic Toilet Paper Packing Machine
Capacity	12-20bag/min
Single roll size	3 column : 90-140mm; 4 column : Ø 90-120mm
Bag size/Rolls per bag	L300*W(180-480)*H(90-280) mm
Bundling bag mode	pre-made bag with air-bleed hole Max bag length: 850mm
Bundling bag material	PE, thickness::≥0.05mm
Bundling bag store	40mm, Two bag storage
Bundling bag storing quantity	≤300 pcs
Feeding mode	Full automatic feeding system
Suitable for packing	Horizontal paper tissue roll
Heating Power	1.4KW
Inlet pipe diameter	10-12mm
Air supply	0.6MPA(Supplied by user)
PLC	Mitsubishi PLC
Power supply	380V 50HZ
Machine size	L7500*W1850*H2200 mm
Certificates	CE, ISO9001:2008, SGS

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The Optional Device
Full Embossing Unit

1.The whole wallboard Structure: 50 mm steel plate;
2.Steel roll to steel roll or steel roll to rubber roll;
3.Independent motor driving, frequency converter control;
4.Embossing roll dia: 320 mm depends on machine width;
5.We will provide embossing pattern for free or design.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
High Level Glue Lamination System
1. Two plies of paper web, each one goes to embossing first (steel roller to rubber roller);
2.The glue will be caught on the bulge of embossing face, goes to the middle of two steel rollers ( there point point combined two plies into one, or nested combined two plies into one);
3. Make the paper web more absorbency and strong;
4.Lamination unit with glue capacity adjusting control, to control the glue capacity from the glue tank to the paper surface;
5. It adopts scraping glue system, also can adopt rolling glue, the cost is different, scraping glue on the glue is much more stable than rolling glue on the glue, and the glue speed is more faster, and the probability of sticking paper is much lower;
6.Independent motor control glue: when stop machines, this motor automatically stir glue to avoid glue dry hard to clean;

7.When paper broken, machine will stop automatically.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Finished Product


Why Choose Us
Foshan Meijing Machinery Manufacture Co., Ltd. established in 2005.We are well-known manufacture more 18 years experience, specializes in machinery for paper tissue in China, a professional manufacturer and specialized in household paper tissue converting machines and ancillary machinery
We are dedicated to the creation of high-quality and advantage design machines that remain to meet different market products demands. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Debugging equipment and technical personnel in the company under the guidance of theory and practice of the user's technical training.
Packaging & Shipping
Certifications
FAQ
Q1: What is the Warranty for the machine?
we have 2 years warranty.If any quality problems occurred under normal condition in this period ,we will take on the cost of maintenance and replacement and other related cost, After Warranty, it is our duty to keep after service and support your production at any time. Q2: How to operate and maintain the machine? First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service Q3: What is the price of production line? 1. Please tell me what's the width of jumbo roll(raw paper) will you process? 2. Do you need embossing unit or lamination unit? 3. What's the daily capacity of machine do you need? We need to know the details of the machine ,then can give you the best price. Q4: Can i get the paper roll sample from you? We are very glad to send different paper products samples, to help you understand and find more better products position in your local market.
