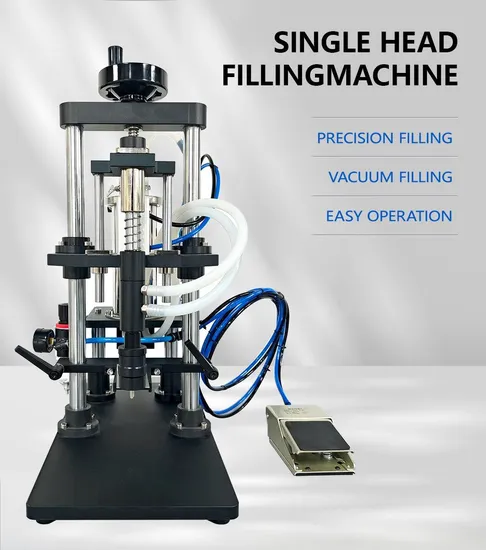

Pneumatic Anti-Explosion Perfume Alcohol Filling Machines Vacuum Sealer Glass Bottle Filling Machine

Product Description

Product Description

Name	Single head perfume filling machine
Capacity	10-25 bottles/per min
Filling capacity	10-100ml
Pressure	0.4-0.6MPA
Applicable bottle diameter	5-25mm
Product applicable height	50-200mm
Working principle	pneumatic
Machine size	230*390*620mm
Weight	15kg
Head	1 head (Can be customized)

Detailed Photos
Using method
1.Placing the suction tube in the material drum to ensure proper material flow.
2.Connecting the air compressor
3.Adjust the locking and filling height according to the height of the bottle.
4.When the locking and height adjustment is completed, can test filling, first remove the air from the equipment, observe the operation of all parts of the equipment, and so on after the air in the equipment is removed cleanly. Then a small amount of material filling test run, check whether the filling process is smooth, filling volume is accurate. When all completed can be officially used!
Packaging & Shipping

Package weight	20kg
Package Size	620*350*300mm

Company Profile
Certifications
FAQ 1. Are you a machine manufacturer or trading company?
We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!
2. How do you guarantee this machine normally operating? Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year. 3.Do you have manual or operation video for us to know more about the machine? Yes, we will send you the manual and operation video after you ask for us.
4. What should I do to choose the best machine for us? *Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
*After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
*After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
5.If there's some spare parts that broke, how to solve the problem? we will send you the manual and operation video after you ask for us.
6. If there's some spare parts that broke, how to solve the problem?
First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
7. What is the normal lead time?
*.Ready to ship:24 hours
*.Made to order: 25-35 Days
*.Made to order, requiring new molds and deep processing: 45-55 Days.
