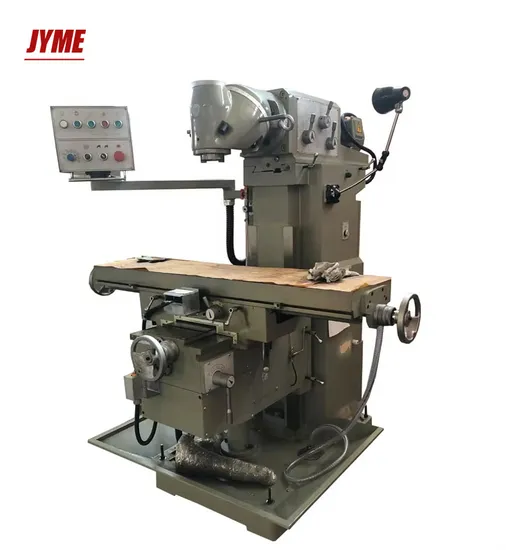

X6230 Universal Milling Machine China Precision Milling Machine
| US$5,000.00-5,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6230
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1270X300mm
Table Travel
700/300/400mm
T Slot(Number-Width-Pitch)
3-14-80mm
Spindle Taper
ISO40
Spindle Speed Range
45-1660rpm
Main Motor Power
3kw
Weight
1700kg
Overall Dimension
1700X1760X1700mm
Transport Package
Export Wooden CTN
Specification
1700x1760x1700mm
Trademark
JYME
Origin
China
Production Capacity
1000
Product Description
The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.Product main technical parameters:
| Specifications | Units | X6230 |
| Table size | mm | 1270x300 |
| Table travel | mm | 700/300/400 |
| T-slot numbers / width /space | mm | 3-14-80 |
| Spindle taper | | ISO40 |
| Spindle speed range | rpm | 45-1660rpm |
| Distance between spindle nose and table surface | mm | 100-500 |
| Distance between spindle axis and table surface | mm | 0-400 |
| Range of table feed | mm /min | XY:30-830 Z:23-625 |
| Milling head swivel range | ° | 360 |
| Spindle motor power | kw | 3 |
| Feed motor power | kw | 1.1 |
| Weight | kg | 1700 |
| Overall dimension | mm | 1700x1760x1700 |
