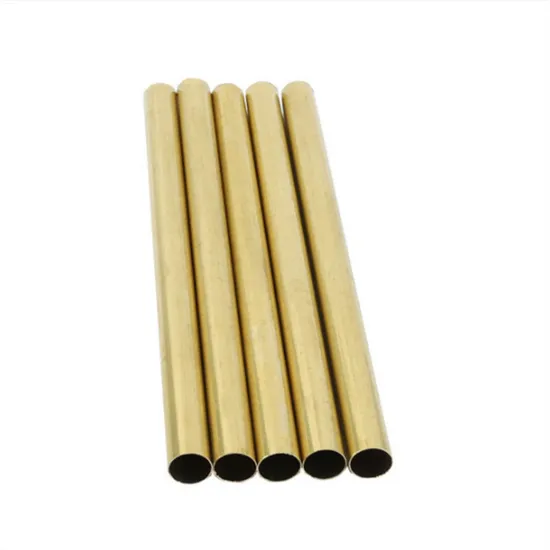

H65 Brass Capillary Thin-Walled Hollow Copper Tube Precision Cutting, Bending, Punching

H65 Brass Capillary Thin-Walled Hollow Copper Tube Precision Cutting, Bending, Punching

US$6.00-50.00 1 kg (MOQ)

Basic Info.

Model NO.
H65
Material
Brass
Shape
Round
Color
Yellow
Key Word
Copper Tube, Copper Strip, Copper Wire, Copper Rod
Materials
Brass, Purple Copper, Phosphor Copper, Red Copper
Material Grade
Grade a Pure Copper
Packing
Plastic Molds and Wooden Boxes
Wall Thickness
0.05mm~1.5mm
External Diameter
0.15mm~15mm
Sample
Free to Provide
Tolerance
±0.01mm
Apply
Aerospace, Precision Instruments, Medical, Electro
Production Process
Continuous Casting and Rolling
Processing Services
Cutting, Bending, Deburring, Leveling, Straighten
Authentication
ISO9001
Minimum Order Quantity
1kg
Stock
80000kg
Characteristic
Corrosion Resistance, Good Ductility, Easy Process
Transport Package
Standard Airworthiness Packaging
Specification
1.0*0.15mm
Trademark
HC
Origin
Shenzhen, China
HS Code
7222400000
Production Capacity
800000kg

Product Description

Brass rod/purple copper rod
modelH59H62H65 H68 /T1 T2 T3
C3604 C3602 HB159-1 HBI60-1
environment protectionaccord with
Product FeaturesGood wear resistance, good mechanical properties, easy to process
Yellow copper foil/purple copper strip
texture of materialH59 H62 H65 H68 H70 H72 H90 H92/T1 T2 T3
C3604 C3602 HB159-1 HBI60-1 C1020
Thickness0.01mm-3mm
width2.0mm~600mm
HardnessFull Soft Annealing, 1/2H Semi Hard, 3/4H Hardness, H Full Hard, EH Extra Hard
Processingwidth slitting, slicing, surface coating, laser cutting, surface drawing, surface electroplating (tin plating, nickel plating, silver plating), etching and aging, etc
Product UsageBrass has high strength and plasticity, and can withstand cold and hot pressure processing well, with a tendency towards corrosion and cracking. Mainly used as conductive, heat-conducting, and corrosion-resistant equipment.
Production processIngot hot rolling method
Brass wire/purple copper wire/phosphor copper wire
Specifications0.05mm~8mm
Hardness85~145HV
texture of materialH59 H62 H65 H68 H70 H72 H90 H92/T1 T2 T3C3604 C3602 HB159-1 HBI60-1 C1020
tensile strengthob(mpa):340~460
characteristicHas good mechanical properties, good plasticity in hot state, acceptable plasticity in cold state, easy cutting, easy fiber welding and soldering, corrosion resistance
Product UsageGood conductivity, widely used in the manufacture of wires, cables, brushes, etc; Good thermal conductivity, commonly used to manufacture magnetic instruments and meters that require anti magnetic interference, such as compasses, aviation instruments, etc; Excellent plasticity, easy to process by hot and cold pressing.
Yellow copper tube/purple copper tube/coil tube
texture of materialH59 H62 H65 H68 H70 H72 H90 H92/T1 T2 T3C3604 C3602 HB159-1 HBI60-1 C1020
Product functionAir conditioning pipe for refrigeration
Production scopePrecision cutting without burrs. Precision cutting with a length tolerance of+0.03mm, capable of cutting a minimum outer diameter of 2mm and a minimum outer diameter of 1mm
Production processContinuous casting and rolling
manufactorShenzhen Huachang Weiye Metal Materials Co., Ltd
Detailed PhotosOur Advantages
Company Profile Ingredient specification table
Shenzhen Huachang Weiye Metal Materials Co., Ltd
T2 Copper Tube Product Specification Table(Unit: mm)
purpleCopperPipe
ф outer diameter X wall thicknessф outer diameter X wall thicknessф outer diameter X wall thickness
ф2*0.5ф8*0.5ф12*0.5ф16*0.5ф20*0.5ф28*1
ф8*1ф12*1ф16*1ф20*1
ф3*0.5ф8*1.5ф12*1.5ф16*1.5ф20*1.5ф30*1
ф3*1ф8*2ф12*2ф16*2ф20*2ф30*1.5
ф30*2
ф4*0.5ф9*0.5ф13*0.5ф17*0.5ф21*1
ф4*1ф9*1ф13*1ф17*1ф21*1.5ф31*1.5
ф9*1.5ф13*1.5ф17*1.5ф21*2ф31*2
ф5*0.5ф9*2ф13*2ф17*2
ф5*1 ф22*1ф32*1.5
ф5*1.5ф10*0.5ф14*0.5ф18*0.5ф22*1.5ф32*2
ф10*1ф14*1ф18*1ф22*2
ф6*0.5ф10*1.5ф14*1.5ф18*1.5 ф33*1.5
ф6*1ф10*2ф14*2ф18*2ф23*1ф33*2
ф6*1.5 ф23*1.5
ф11*0.5ф15*0.5ф19*0.5ф23*2ф34*1.5
ф7*0.5ф11*1ф15*1ф19*1 ф34*2
ф7*1ф11*1.5ф15*1.5ф19*1.5ф25*1
ф7*1.5ф11*2ф15*2ф19*2ф25*1.5ф35*1.5
ф7*2 ф25*2ф35*2
Certificationsapplication areaPackaging & Shipping
FAQQ1. What are the advantages of your company?
A1. We are a professional manufacturer of steel and non-ferrous metal materials, with strong capabilities and extensive market influence in material production and research and development.
Q2. Why choose your product?
A2. Our products have complete specifications, excellent quality (with outstanding corrosion resistance, high temperature resistance, high strength, and hardness), technical support and training, good reputation, and superior prices.
Q3. Can non-standard products and special material processing be customized?
A3. Sure, we welcome you to provide pictures and samples, and customize according to your needs.
Q4. What is the delivery time?
A4.Usually within 7-10 days, customized orders may take longer.
