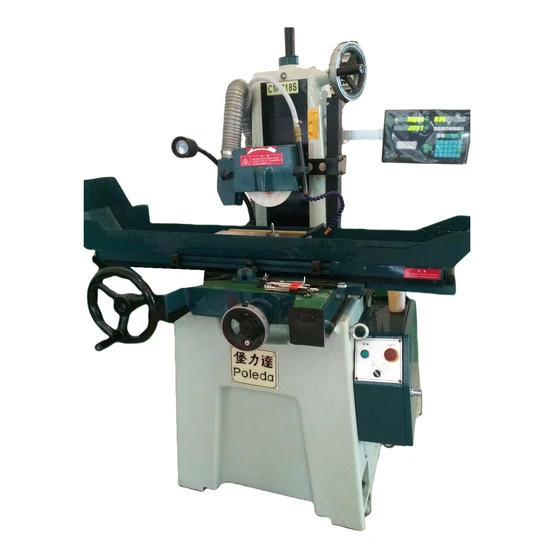

618s Multifunctional Surface Grinding Machine Taiwan Spindle

Product Description

Product Description
Surface grinding machine features:
High Efficiency: The POLEDA Universal Surface Grinding Machine boasts a high spindle speed and rapid processing capabilities, significantly enhancing overall productivity.
Long Service Life: Meticulously designed and manufactured, our surface grinding machine's mechanical components promise exceptional durability and longevity.
Low Maintenance Cost: With simple maintenance requirements, this grinding machine ensures minimal upkeep costs, making it economically advantageous.
Simple Operation: User-friendly and straightforward, the surface grinding machine minimizes operator training time and associated expenses.
Safe and Reliable: The machine is designed with high safety standards, ensuring maximum operator protection and peace of mind.
Good Structural Rigidity: Constructed predominantly of cast iron, the surface grinding machine features excellent shock resistance, wear resistance, and thermal stability. Its robust structure-including the bed, column, workbench, grinding wheel, and wheel frame-ensures optimal rigidity and stability.
Versatile Applications: These outstanding performance characteristics make the POLEDA Universal Surface Grinding Machine an ideal choice for a wide array of industrial applications. It is perfect for grinding various surfaces and complex shapes without requiring mechanical feed.

Product Parameters
Mechanical Properties
Machine Structure: Embodying unparalleled craftsmanship, the POLEDA Universal Surface Grinding Machine's main castings are forged from premium high-grade cast iron. Through an intricate annealing process, internal stresses are meticulously eliminated, ensuring outstanding precision, formidable rigidity, and an extended machine lifespan. Slide Way: Engineered with a double V slide way on both the left-right and front-back axes, enhanced by the application of wear-resistant resin TI URCITE-B and precision shovel flower, this machine guarantees a smooth, wear-resistant sliding experience. This exceptional design is impeccably suited for both forming and grinding tasks, providing unparalleled versatility and reliability.
Cylindrical Straight Spindle: At the core of our machine lies the P4 ultra-precision angular roller bearing, engineered for excellence. This advanced bearing configuration ensures minimal noise and vibration, while delivering impressive torque even at high speeds. Such a design is perfectly aligned for heavy-duty cutting and a wide array of forming grinding operations, offering both precision and power.
Automatic Lubrication System: Elevate your machinery's longevity with our state-of-the-art circulating automatic lubrication system. The lubricating oil initiates its cycle as soon as the main spindle starts, ensuring forced lubrication to each screw and slide, thus markedly reducing wear. An innovative oil mirror installed above the column offers real-time monitoring of the lubrication status, guaranteeing optimal performance and maintenance efficiency.

Product name	Surface grinding machine
Product model	618S
Product technical parameters
1 Table size		150*450MM(6*18'')
2 Maximum grinding length		475MM(18-3/4'')
3 Maximum grinding width		185MM(6-1/3'')
4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
5 Standard disk size		150*350MM
6 Left and right feed/manual stroke		485MM(19'')
7 Front and rear feed/manual stroke		180MM(7'')
8 Hand wheel feed (per turn)		5MM(0.2'')
9 Hand wheel feed		0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ)		2800RPM
13 Spindle motor		1.5HP
14 Weight (approximate)		850kgs
15Machine size (L * W * H)		1350*1050*1850MM
Grinding machine configuration	Accessories name and specification	Quantity
Standard parts for machine tools	1,Grinding wheel and flange	1
	2,Wheel removal wrench	1
	3,Hexagonal wrench	1
	4,Leveling screws and foot pads	1
	5,Grinder guide oil	1
	6,Toolbox and adjustment tools	1
	7,Hanging rings	1
	8,Grinding wheel	1
Special parts for machine tools	9,Grating electronic ruler	1
	10,Permanent detail disk	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) is tailored to your specific needs, such as color, logo, and other customizations. For some standard items in stock, the MOQ is as low as 1 set, offering you unparalleled flexibility.
2.How do you control the quality of the products?
A. Quality is our paramount concern. We employ rigorous quality control measures to ensure our standards are perpetually met. Our mission is to deliver superior quality, competitive pricing, and exceptional service to our customers.
3.What are the main products of your company?
A: We excel in manufacturing a wide range of machines including CNC Machines, Lathes, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and more. Our diverse portfolio caters to various industrial needs.
4. What are your trade terms?
A: We accommodate a variety of trade terms such as Ex-works (EXW), FOB (Free On Board),
CFR (Cost and Freight),
and CIF (Cost, Insurance, and Freight), providing you with flexible and convenient options..What are your payment terms?
A: Our payment terms are straightforward: T/T (Telegraphic Transfer), with a 30% initial payment upon order placement and the remaining 70% balance due before shipment, ensuring a smooth transaction process.
6.What CNC systems do you use?
A: We offer a broad array of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice is based on your specific preferences and requirements.
7.How can I choose the most suitable machines?
A: Simply provide us with the drawings and details of your products and their applications. Our team of experts will recommend the most suitable machines tailored to your needs.
8.What kind of packaging do you offer?
A. We predominantly use robust plywood cases to ensure all goods are delivered in pristine condition. Customized packaging solutions are available upon request to cater to your specific requirements.
9.Can your plant do OEM?
A: Absolutely, we offer both OEM and ODM services to meet diverse customer needs, ensuring your specifications are meticulously met.
10.How about the warranty?
A: Our products come with a comprehensive one-year warranty post-delivery. Additionally, we provide lifetime service support for our machines, extending beyond the warranty period for your peace of mind.
