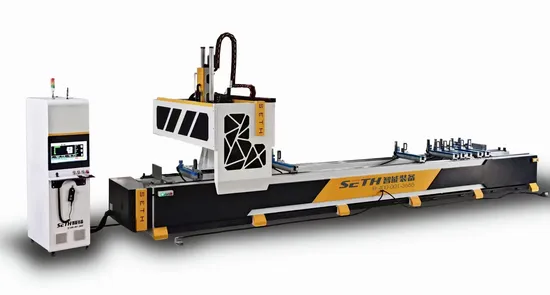

4-Axis CNC Gantry Machining Center for Automotive Aluminium Parts Processing

Product Description

Product descriptions from the supplier
Overview
Introduction
It is suitable for milling, cutting, rigid tapping and carving of various
holes and grooves of aluminum curtain walls and industrial aluminum
proles, and cooperates with three-dimensional programming software
to perfectly realize drilling, cutting and milling.
Adopt imported control system and servo motor, with RTCP tool tip
following function, and can process multiple faces at one time.
High-quality grinding ball screw, linear guide grinding rack and high speed bearing and other mechanisms to ensure that the equipment
has high machining accuracy.
The position of the xture can be automatically positioned to avoid the
machining area. (optional)
Two tables can be used to process two or two proles at the same time,
with interactive feeding and non-interference.
With a 12-station tool magazine, equipped with a pair of cutting blades
(optional), automatic tool changing and self-cutting processing.
The high-speed motorized spindle imported from Italy can finish
machining at any angle within ±90°, with high working eciency.
Customizable 9-meter extended model.

CLAMP SYSTEM 630 mm Part Clamping, Easy clamping adjustment Ability to make, Servo control according to the parts to be processed automatic positioning can be done, clamp fixed part front side provides the advantage of easy loading, Profile clamp because the surfaces on which it sits are rolled system Provides profile sliding comfort on the surface.
	SYNTEC SYSTEM 8 Tool cover wire magazine, Ø500 Chainsaw, also for Chainsaw chainsaw magazines, Automatics magazine cover, Magazine location advantage lesave time,Process to process on the part and you'll have time to change teams saves money.
TESTERE Separate magazine for saws, saws up to Ø500 clamping capacity, vice positionable With the vice, the saw can work comfortably.
	DAYAMA Fence-sided Profi l rest easy part reset with the system.
WORK SHAFT Spi ndle Motor 15-18 Kw24000 RPM automatc kit interchangeable, ILC Tool Cooling System, HSK tooling holder and tool holder cleaning system, Operator the team written to minimise errors as much as possible exchange security protocols, optical communication 0.001 mm command increment can make positioning.
	CHIP DISCHARGE SYSTEM CHIP DISCHARGE SYSTEM Chip conveyor for realised parts

Main specifications and technical parameters
X-axis positioning accuracy:0.03mm
Y/Z-axis positioning accuracy :0.02mm
Repetitive positioning accuracy :0.02mm
X-axis stroke:7000~10500~15500mm
Y-axis stroke:630mm 3-axis, 510mm 4-axis
Z-axis stroke:590mm
A-axis stroke:±120°
C-axis stroke:±220°
X-axis running speed:0~80m/min
Y-axis running speed:0~35m/min
Z-axis running speed:0~25m/min
Spindle speed:16000rpm
Taper of spindle hole:HSK-F63
Spindle power:15kW
Tool magazine form:Umbrella form
Tool magazine capacity:Mobile 12 stations+xed 1 station (saw blade)
Cooling system:Atomized cooling
Lubrication system:Automatic lubrication
Fixture station:8
Gas consumption:15L/min
Overall dimensions:11300*2950*3500mm
Weight:about 7000kg
Equipment Features
☆The moving part of the machine consists of a moving door, and the moving gantry is equipped with a heavy motorized device with a high-precision rack.
☆High-power electric spindle (15kW) with HSK-63F tool joint can also perform heavy machining, and good results can be obtained in terms of speed and accuracy.
☆The mobile gantry contains a 12-bit tool library system, and 500 mm tools are stored separately in a special tool library.
☆The machine tool is equipped with dual-station mode, which can minimize the downtime of the machine tool. Because in this mode, the workpiece can be replaced (loaded/unloaded) within a complicated processing time. It is also possible to process different workpieces in two processing areas.
☆Equipped with gantry shell, it can not only protect operators, but also
reduce environmental noise.
The moving part of the machine consists of a moving door, and the moving gantry is equipped with a heavy motorized device with a high-precision rack.
High-power electric spindle (15kW) with HSK-63F tool joint can also perform heavy machining, and good results can be obtained in terms of speed and accuracy.
The mobile gantry contains a 12-bit tool library system, and 500 mm tools are stored separately in a special tool library.
The machine tool is equipped with dual-station mode, which can minimize the downtime of the machine tool. Because in this mode, the workpiece can be replaced (loaded/unloaded) within a complicated processing time. It is also possible to process different workpieces in two processing areas.
Equipped with gantry shell, it can not only protect operators, but also reduce environmental noise.

Why Choose Us
Imported high-speed spindle direct motor mounts diamond saw
blade, and the feed of saw blade is driven by gas-liquid damping
cylinder, which ensures stable cutting.
High-precision imported cutting saw blade, smooth cutting section,
imported servo motor to drive imported reducer.
The size of several profiles to be cut can be input at one time, and
continuous cutting of different lengths can be realized, and the
processing size can be directly input, and the sawing length can be
changed without going back to the reference point.
There is a saw blade sealing device under the workbench, which has a
good chip removal eect, a follow-up opening and closing saw cover,
safety and reliability, and a good working environment.
Each head has two cylinders to clamp the profile, which makes the
cutting safe and reliable.
