Factory Price Cjtouch 17"Open Frame Capacitive Touch Screen Monitor with Waterproof

Product Description

Product Description

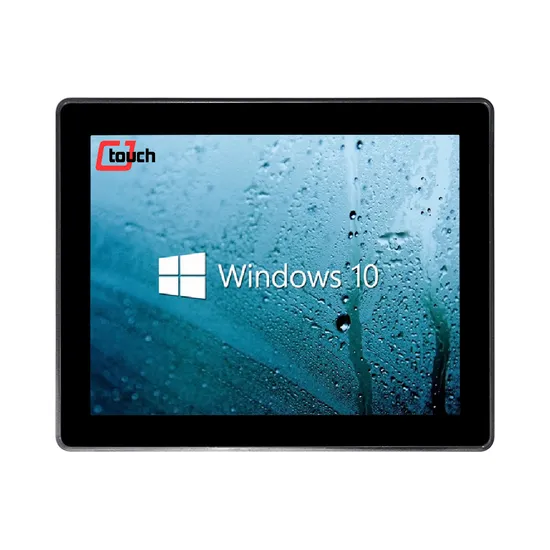

17"Projected Capacitive Touch Multi Touch Monitor with VGA ,DVI and HDMI Waterproof and Vandalproof

Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible. Keep this equipment away from humidity. Put this equipment on a reliable surface during installation. Dropping it or letting if fall may cause damage. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet. Position the power cord so that people cannot step on it . Do not place anything over the power cord. All cautions and warnings on the equipment should be noted. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient over voltage. Never pour any liquid into an opening. This may cause fire or electrical shock. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture. The equipment does not work well, or you cannot get it to work according to the user's Manuel. The equipment has been dropped and damaged. The equipment has obvious signs of breakage. 13. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW -10ºC OR ABOVE 50ºC. THIS MAY DAMAGE THE EQUIPMENT.
Advantage of our projected capacitive touch monitor:
· Industrial Desgin With Excellent Durablity
· PCAP Technology Multi Touch 5 Touch Points OR 10 Touch Points
· IP68 Touch Screen Surface Water-Proof Sealled
· 3MM Enhanced Glass With Vandal Proof Resistance
· High Light Transmission Clear Glass
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· Elo PCAP Open Frame Dimension & Fixation Compatiblity
· 18 Month Warranty
· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc
· Factory Competitive Price & Fast Delivery

Detailed Photos


Product Parameters

General
Model	COT170-CFF03
Series	Water-proof and Open frame
LCD Type	17" Active matrix TFT-LCD
Video Input	VGA, DVI and HDMI
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)	337.920(H)×270.336(V)
Resolution	1280×1024@75Hz
Dot Pitch(mm)	0.264×0.264
Nominal Input Voltage VDD	+5.0V(Typ)
Viewing angle (h/v)	85°/85°/80°/80°
Contrast	1000:1
Luminance(cd/m2)	250
Response Time(Rising/Falling)	5ms/5ms
Support Color	16.7M
Backlight MTBF(hr)	30000
Touchscreen Specification
Type	Cjtouch Projected Capacitive touch screen
Multi touch	10points touch
Touch Life Cycle	10 millions
Touch Response time	8ms
Touch System Interface	USB interface
Power consumption	+5V@80mA
External AC Power Adapter
Output	DC 12V /4A
Input	100-240 VAC, 50-60 Hz
MTBF	50000 hr at 25°C
Environment
Operating Temp.	0~50°C
Storage Temp.	-20~60°C
Operating RH:	20%~80%
Storage RH:	10%~90%

Company Profile
Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. Established in 2009 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
Production workshop
Certifications
Packaging & Shipping
What We can offer
IR touch screen/Frame
SAW touch screen
PCAP touch screen panel
4wire/5wire resistive touch screen
PCAP/NANO touch foil/film
PCAP flat screen touch monitor
SAW touch screen monitor
IR Open frame touch display
Desktop touch monitor
Desktop all in one touch PC
PCAP all in one touch computer
Bar lcd panel
High brightness advertising player/advertising machine
Curved touch display
Full bonding TFT lcd panel with touch screens
Touch monitor with mirror
OEM/ODM/Customization
