CNC Milling Machine Engraving Machine CNC Vertical Machining Center for Metal

Product Description

Product display

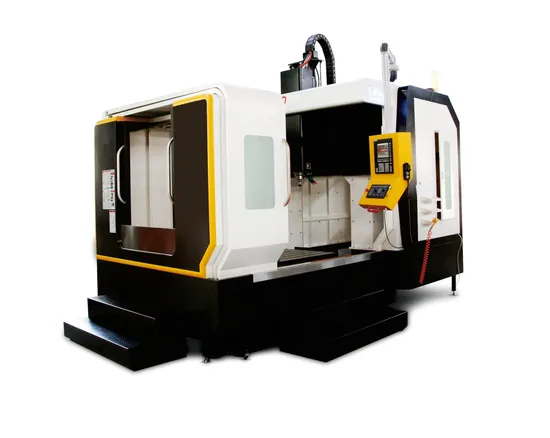

The FDG-450 adopts gantry structure and is cast by high-quality Mihanna cast iron. The internal dragon skeleton is strengthened. All cast iron has been annealed, with high stability and long-term use without deformation. Due to his heavy structure, rigid spindle and high main motor power, this machine can be used for engraving, but also milling. Sealed outer cover, double - sided doors open to facilitate product processing. Adopt special high-speed carving and milling machine control system, precision ball screw and linear guide rail, the coupling has precision measurement, to ensure the stability in the process of processing, return action zero clearance, improve production efficiency.FDG-450 is favored by more and more customers for its high cost-performance, fast processing speed and good finish.
Applications: Automobile industry, household electrical industry, injection mold, hardware mold, hand tools etc.
Machine Feature:
1,G series engraving and milling machine electric spindle has high power and high speed suitable for high speed and high gloss finishing2,Threeaxis feed torque is large, the stroke range is wide, the bearing capacity is strong, and it can be processed in variousprocesses such as milling and engraving.lt is suitable for the processing of small and medium parts.3,The castings are all made of resin sand industrial casting, multiprocess artificial aging treatment precisionmachining,eliminating the internal stress of castings and ensuring the stability of processing precision.4,The main structure is analyzed by finite elements to achieve the best structural rigidity andstability.5,The material has high density inside, shock absorption and stability, and the workbench has good balance during the movement process.lt has strong seismic resistance during heavy cutting.6,Threeaxis adopts high precision ball linear guide, which has high rigidity low noise and low friction.It can be used for fast displace mentand optimal rounding accuracy.

Product Paramenters

Machine data\model	unit	FDG-450	FDG-540	FDG-650
working desk size	mm	500×360	500×400	600×500
Left and right stroke (X)	mm	500	500	600
Front and rear stroke (Y)	mm	350	400	500
Up and down stroke (Z)	mm	180	200	280
Workbench load bearing	kg	200	300	350
Spindle end to work surface distance	mm	100-300	50-280	80-350
Spindle taper		ER25/32/BT30	ER25/32/BT30	ER25/32/BT30
Main motor power of the main shaft	kw	4.0	4.5/5.5	5.5/7.5
Spindle speed	rpm	500-24000	500-24000	500-24000
Tool magazine form (optional)	Unit	8/12	8/12	8/12
Three-axis servo motor power	kw	0.75/0.75/0.75	0.85/0.85/0.85	0.85/0.85/0.85
Three-axis fast moving speed	m/mim	16	16	16
Cutting feed rate	m/mim	8	8	8
positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300
Repeatability	mm	±0.003/300	±0.003/300	±0.003/300
Dimensions	mm	1400×1600×2100	1600×1700×2200	1900×1800×2350
Net weight of machine tool	kg	2500	2950	3500

FAQ
Q.What are your normal lead times?
A.Our company lead times range from 30-45 days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, Cash, Gredit Card etc.
Q.What kind of package do you offer?
A.Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification?
A.Yes, we have CE certification, machine quality is one year guaranteed.
After sales services:
We have Local After-sales Service in India and Vietnam.
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
