Basic Info.
Power Source
Hydraulic Pressure
Certification
CCC, ISO9001, CE
Transport Package
Standard Export Wooden Case
Production Capacity
500sets/Year
Product Description
Product Description

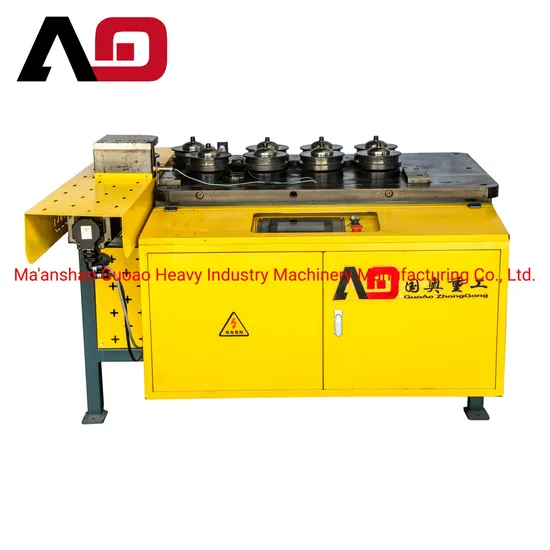

Hydraulic coiling machine can process round steel, round pipe, square pipe, channel steel, Angle steel, flat steel and other profiles. It is the ideal equipment for making Angle steel flange and profile rolling and bending. Widely used in construction, decoration, hardware, light industry and chemical industry. This product uses the vertical structure, the winding circle bending effect is ideal, the performance is stable and reliable.
Structure
1. Worktable
2. Mold
3. Holder
4. Control Panel
5. Electrical Box
6. Foot Pedal
Specifications
| WS-50 |
| |
Main Technical Specification | Specs | Figure | Unit | |
1 | Bending Force | ≤245 | N | |
2 | Angle steel type | ≤5# | mm | |
3 | Min Rolling Dia | 300 | mm | |
4 | Motor Power | 4 | KW | |
5 | Oil pump motor power | 1.5 | KW | |
6 | Reducer | RV130 |
7 | Magnetic Valve | DC4V-3-OC-M-D24-60 |
8 | Cylinder Stroke | 120 | mm | |
9 | Dimension Length | 880 | mm | |
10 | Width | 880 | mm | |
11 | Height | 840 | mm | |
12 | Weight | 620 | KG | |
|
