Br570dy Automatic Cheap Price CNC Lathe Slant Bed Lathe Machine

Product Description

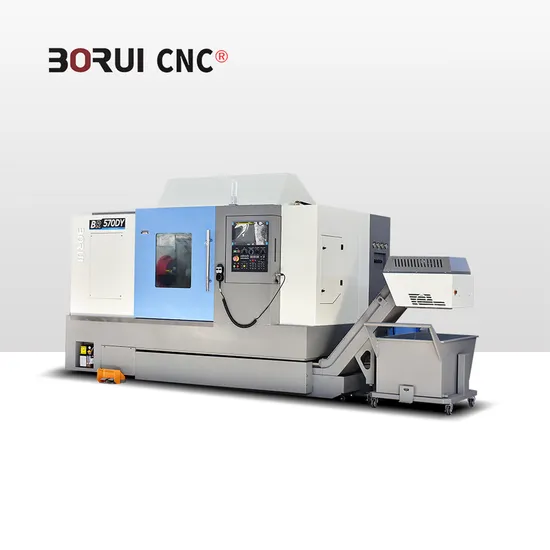

Br570DY Automatic Cheap Price CNC Lathe Slant Bed Lathe Machine
Product Description
Product description:
45° slant bed CNC lathe 3000 rpm independent spindle Taiwan HIWIN lead screw wire gauge 12-station servo turret-----optional power turret
Application:
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace, and other industries on the rotary parts for efficient, high-volume, high-precision processing. Processing accuracy can reach 7 level.
Product main technical Specifications:

ITEM	UNIT	BR570-520/750/1000	BR-650-750/1000/1500/2000/3000
Maximum turning diameter of bed body	mm	Φ570	Φ650
Maximum turning diameter on a skateboard	mm	Φ320	Φ500
Maximum cutting length	mm	520/750/1000	750/1000/1500/2000/3000
Maximum cutting diameter - disc class	mm	Φ360	Φ540
Maximum cutting diameter - shaft class	mm	Φ250	Φ400
Spindle end type and code		A2-6/A2-8	A2-11 optional A2-8
Diameter of spindle through hole	mm	65/86	optionalΦ112 Φ86
chuck	inch	10 "hydraulic hollow chuck optional 8"	Hollow 15 inches optional 10 inches 12 inches
Spindle speed range	r/min	3000rpm,optional 4500rpm	1200rmin
Main motor power	KW	7.5kw optional 11kw	22KW
Fast moving speed on the X-axis	m/min	20	16
Z-axis fast moving velocity	m/min	16	16
Stroke of X axis	mm	250	380
Z axis stroke	mm	600/860/1550/2050/3050	600/850/1350/1850/2850
Form of guide rail		HIWIN/PMI line track in Taiwan	HIWIN/PMI line track in Taiwan
Tool holder form		12 station servo cutter tower (Y axis living turret optional))	12 station servo cutter tower
Tool size	mm	25X25 Φ40	32×32 Φ40
Tail seat sleeve diameter/stroke	mm	φ110/L100	φ150/L150
Taper of tail seat sleeve		MT4	MT-5
Positioning accuracy X/Z	mm	0.01/0.012	0.01/0.018
Repeat positioning accuracy X/Z	mm	0.006/0.008	0.008/0.010
Precision of machining	level	IT6	IT6
Roughness of surface	um	Ra≤1.6	Ra≤1.6
Overall dimensions of machine tool	mm	2900/3100/4300/5000/5600x2000x2000	3450/3700/4200/4700/5700×2200×2200
Machine tool weight	kg	3600/4000/5000/6100/7500	5000/5800/6800/7800/9000

Standard Accessories:
1.GSK980TDC or Siemens 808D NC system
2. Servo motor 7.5 kw

Optional Accessories:
1. NC System: KND1000Ti, Fanuc Oi Mate-T
2. Main Motor: Servo 11/15 KW

3. Turret: 8 station electric turre
4. Chuck: 8″Non-through hole hydraulic chuck

5. 8″Non-through hole hydraulic chuck (Taiwan)
6. 8″through hole hydraulic chuck(Taiwan)
7.10″Non-through hole hydraulic chuck
8. 10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
12.Inverter 11 KW
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have

Company Profile
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
