Mobile Electric Control Pskdy40zb Fire Water Monitor

Mobile Electric Control Pskdy40zb Fire Water Monitor

US$4,400.00-5,985.00 1 Unit (MOQ)

Basic Info.

Model NO.
PSKDY40ZB
Alarm Valve Type
Dry Alarm Valve
Automatically Opened and Closed Repeatedly
Can Automatically Opened and Closed
Open Fire Sprinkler System Type
Water Spray System
Closed Fire Sprinkler System
Wet Fire Sprinkler System
Dry Alarm Valve Type
Enclosed Type
Wet Alarm Valve Structure
Seat Type
Alarm Valve Diameter
50mm
Nozzle Flow Coefficient
80
Deluge Valve Type
Piston Type
Product Name
Electric Mobile Fire Monitor
Working Pressure
0.8MPa, 1.0MPa
Max Reach
Max Reach @ Max Flow: 65m
Material
Aluminum Alloy
Color
Customized
Transport Package
Wooden Box
Trademark
SINOFIRE
Origin
Jiangsu, China
HS Code
8424200000
Production Capacity
2000units/Month

Product Description

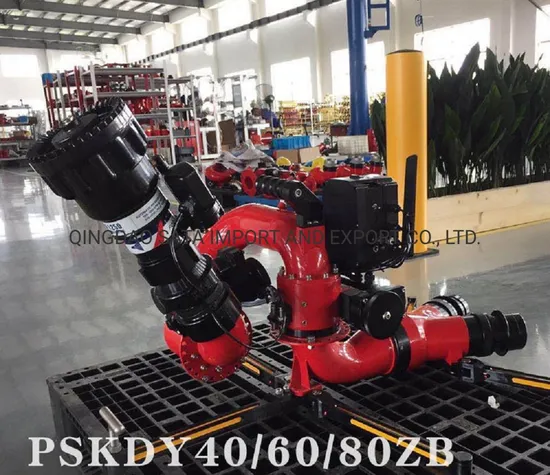

Mobile Electric Control PSKDY40ZB Fire Water Monitor
Our Series Fire-fighting monitor,Automatic tracking and Positioning jet fire-fighting devices and fire-fighting robots fully reflect our company's technological innovation ability. The products are exported to foreign countries and widely used in large space fire-fighting systems, petrochemical fire-fighting, wharf fire-fighting, ship fire-fighting, vehicle-mounted fire-fighting guns, life-saving, rescue equipment, precision equipment fire-fighting and other fields. They are few in China. Professional fire-fighting gun manufacturer with R&D capability and export capability.
1.Advantages:
a. Concentrated jet flow and long range.
b. Large action area and multi-function.
c.Easy to operate and the barrel can either rotate or fasten.
d.Can be equipped on all kinds of fire trucks, fire boats, high platforms, fixed monitor towers and fire pipelines.
2.Working Principle:
The mobile self swinging electric control fire water monitor is suitable for petrochemical enterprises, storage tank areas, aircraft hangars, warehouses, ports, docks, garages and other places. It is also an ideal vehicle mounted fire monitor for fire engines. With large flow and long range, it can extinguish early fires more quickly. It has dual band detection, effectively improve anti-interference ability, image transmission, on-site picture function, linkage function with other fire alarm systems, light weight, compact structure and simple maintenance.
3.Technical Parameters:
We make available customized design for our clients special request.
Application: Boat,Fire Fighting Truck,Fire Robot,Anti-riot Water Cannon Vehicle
4.Components:
Rubber Automatic Pressure Regulating Gun Head,
Antenna,
Runner,
Control Panel Button,
Quick Pull Removable Battery,
DC Motor,
Quick Interface,
Shock Absorption Support Foot
Products introduction:
1. Small size and light weight (self weight 32kg), which can be lifted with one hand and operated by one person. The old mobile electric water cannon is bulky and bulky, requiring 2-3 talents to lift and move.
2. For the replacement of gun head, the test range of 40L is 75m and 80L is 90m. The traditional cross DC is no longer used, but the direct injection in the shape of water column is adopted.
3. The electric control battery adopts a 3-second quick pull-out small removable battery, which is easy to use and can be replaced and charged at any time. The old bulky large cube integrated non removable battery box is no longer used. The remote controller is also small, and can be operated with one hand after studying the palm part according to human function. Even if you wear gloves, the keys are as accurate and comfortable. No longer use the old heavy hands to operate the remote control. Raise the remote control distance to 300 meters.
4. The support part adopts 5-leg stable gravity design, combined with alloy steel cone, and the grip is stably improved.Others models optional
5.Specification:
Flow: 40 / 60L / 80 / S
Rated working pressure: 1.0MPa
Range: ≥ 70m
Operation mode: Manual
Material: stainless steel
Weight: 32kg
Horizontal return angle: 120 °
Pitch: 30 ° ~ 70 °
Weight in Kg Incl. Nozzle Approx. 32KG Range of Motion +70°/-30°vertical , 120°Horizontal
Other Degrees Adjustable
Material Body Stainless Steel Speed(of high speed version) 24°/sec rotation,10°/ sec vertical
Aluminum Hard Anodized Nozzle Power Consumption Max. 24V @ 7.5A
Gear bronze Power Supply 24 VDC
Flow Range @ 7 Bar
(Max recommended)
Nozzle Model:
AN40 - 24Vdc Jet Spray
Nozzle-Adjustable
Reaction Force Up to 1.0MPa
Mechanical Installation Support must withstand
4000 N of force
Flow rates:1200LPM-2400LPM
-3200LPM@100PSI
Options Network, radio remote , aux control etc.
Max. Reach @ 7 bar 70M
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free if the cost is below USD30 with freight on your cost.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q. what is your payment term?
A: T/T 30% payment in advance, balance to be paid after finish production before shipment.
Q: what is your main market?
A: Western Europe,North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia.
Q: Can I have my own customized product?
A: Yes, we can supply logo painting design and package design based in our MOQ.
