Hight Quality & Reliable Pyh Hydraulic Cone Crusher

Product Description

Hight Quality & Reliable Pyh Hydraulic Cone Crusher
Product Description of our Cone Crusher Application
Secondary and Tertiary Crushing
Mining, Aggregate, Metallurgy, Industrial, Construction, Environmental
General Introduction
This series cone crusher is developed with a unique patented designeccentric bushing moving around a stationery shaft.The reinforced main shaft is suitable extra heavy
duty crushing condition. Meanwhile, the crushing
chamber specially designed according to particles sink principal and its matching speed can sharply increase
the crushing ratio, output and content percentage of cubical product in final crushed material. The series crusher is regarded as new generation for replacement of the
traditional spring cone crusher in modern mining industry.
The PYH series cone crushers are characterized by the optimized combination of crusher speed, eccentricity
and cavity profile. This combination has proved revolutionary, providing higher capacity, better product quality and suitability to a wider range of applications.
The PYH cone crusher cavity can be converted from extra-fine to extra-coarse simply by replacing the mantle, bowl liner, adapter ring, and wedge bolts. In this way, the crusher is easily adapted to feed and reach desired product requirements.
This series cone crusher is adopted with a unique patented designeccentric bushing moving around a stationery shaft.The reinforced main shaft is suitable extra heavy
duty crushing condition. Meanwhile, the crushing chamber specially designed according to particles sink principal and its matching speed can sharply increase the crushing ratio, output and content percentage of cubical product infinal crushed material. The series crusher is regarded as new generation for replacement of the
traditional spring cone crusher in modern mining industry.
Working Principle
Adapting particles sink principle(laminated crushing principle), as feeding laminated material and increase its idensity in the crushing chamber, crushing force given fully to material, through squeezing, bending, impact, grinding, and crushing between materials to get the materials crushed.
Technical Parameters

Model	Cavity	Discharge Setting Min (mm)	Feed Opening (mm)	Power (kW)	Weight (t)
PYH-2	X	13	95	160	11.4
	Z	16	120
	C	19	190
PYHD-2	Z	6	54
	C	10	76
PYH-3	X	13	105	220	17.4
	Z	16	150
	C	19	215
	CC	25	230
PYHD-3	X	6	25
	Z	8	54
	C	10	76
PYH-4	X	13	110	315	24.5
	Z	20	200
	C	25	250
	CC	30	300
PYHD-4	X	6	40
	Z	8	50
	C	10	90
PYH-5	X	16	135	400	34.4
	Z	22	210
	C	30	290
	CC	38	330
PYHD-5	X	8	40
	Z	10	56
	C	13	95
PYH-8	X	16	220	630	63
	Z	25	265
	C	30	300
	CC	33	350
PYHD-8	X	5	35
	Z	10	90
	C	13	155

Crusher Models and Capacities (t/h) at Close Side Setting
Model	Close Side Setting (mm)
	6	8	10	13	16	19	22	25	32	38	45	51
PYH-2	55-75	60-90	80-115	110-145	130-170	140-180	150-190	160-210	180-230	200-245
PYH-3	80-95	100-130	110-140	145-185	175-220	190-240	200-260	220-280	240-320	290-380	340-440
PYH-4		115-150	130-175	180-230	220-280	240-320	260-340	280-370	310-430	350-490	400-550	450-620
PYH-5		140-170	170-220	225-290	270-350	310-400	335-430	355-450	395-530	435-600	500-680	560-760
PYH-8			235-330	300-420	370-500	420-540	450-590	480-710	530-780	580-920	560-1000	750-1150

2018 Bauma exhibition

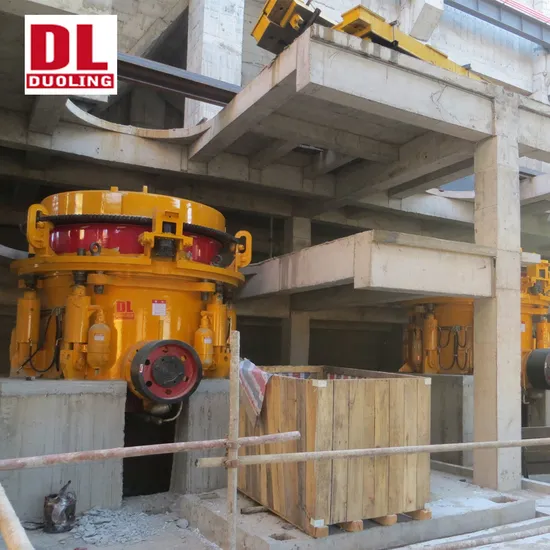

Successful Cases with Our Crusher
