Colorful Seaballs Double Station Blow Molding Machine
| US$25,000.00-40,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DSB70
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Max Volume
7L
Condition
New
Screw Diameter
70mm
Station Number
Double Station
Guarantee Time
1 Year
Delivery Days
60 Days
Machine Lifespan
>20 Years
Company Attribute
Manufacturer
Screw L/D Ratio
24 L/D
Power(W)
28.5 Kw
Machine Size
3.5X2.2X2.65 M
Average Energy Consumption
30.5 Kw
Machine Weight
6.5 Tons
Voltage
Customer Specified
After-Sales Service
Engineers Available to Service Machinery Overseas
Transport Package
Nude Package/as Customers Request
Specification
DSB70
Trademark
DAWSON
Origin
Zhangjiagang Jiangsu
HS Code
8477301000
Production Capacity
up to Product
Product Description

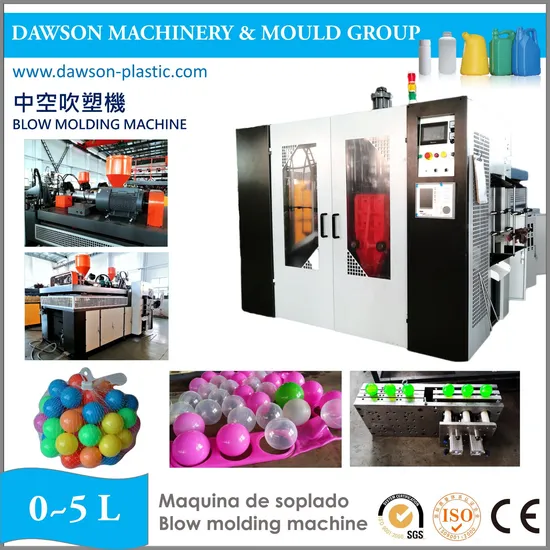

DSB70 extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, plastic toys and other plastic containers not over 8L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
TECHNICAL DATA
| Machine Model | DSB70 |
| Max Product Volume | 7L |
| Target Material | LDPE/HDPE/PP/PVC/PETG |
| Machine Size | 3.5x2.2x2.65 m |
| Machine Weight | 6.5 Tons |
| Voltage Suitable | Customer Specified |
| Screw Diameter | 70 mm |
| L/D Ratio | 24:1 |
| Barrel Heating Power | 14.2 KW |
| Extrusion Motor Power | 22 KW |
| Plasticizing Capacity | 90 KG |
| Platen Size | 320x390 mm |
| Opening Stroke | 150~500 mm |
| Max Mould Size | 350x390 mm |
| Head No. | 3 |
| Central Distance | 110 mm |
| Heating Zone No. | 2+1 |
| Head Heating Power | 5.7 KW |
| Total Power | 52 KW |
| Average Energy Consumption | 30.5 KW |
| Compressed Air Needed | 0.6 Mpa / 0.8 m3 |
| Cooling Water Needed | 4.5 m3/H |
| Loading Reference | 20'GP |
