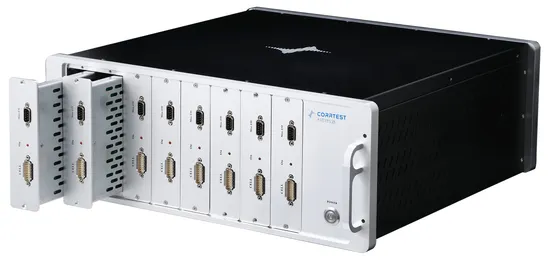

Multichannel Potentiostat Galvanostat 8-Channel Potentiostat Model CS310X (Option D)

Product Description

Corrtest Multichannel potentiostat/ galvanostat/EIS is a versatile instrument offering 8 slots.
Multichannel potentiostat/ galvanostat model CS310X (Option D) is the 8-channel potentiostat. And all the slots are occupied with potentiostat boards. It equals that you can have 8 sets independent single-channel potentiostat/galvanostat in one chassis.
EIS module (10μHz~1MHz) is equipped on all 8 channels for Option D. Each channel potential control range is ±10V, current control range ±1A, can meet experiment requirement for most researchers.
Full floating module and electrical isolation design guarantee each channel is totally independent, which ensures accurate data and efficient simultaneous measurements.
Multichannel potentiostat brings convenience to those who have many samples, and is an ideal device for studies of energy materials, battery study, metal corrosion etc.
8-channel potentiostat/galvanostat There are 4 basic options for CS310X.
Option A: 4-channel with EIS on one channel
Option B: 4-channel, with EIS on all four channels
Option C: 8-channel, with EIS on one channel
Option D: 8-channel, with EIS on all 8 channels
The number of channel and EIS module can be customized.
More channels can be added by potentiostat boards to be installed on current device
EIS can be upgraded online.

Model	CS310X
Options	Option A	Option B	Option C	Option D
Number of channels	4	4	8	8
Max. current on each channel	±1A	±1A	±1A	±1A
Potential range on each channel	±10V	±10V	±10V	±10V
EIS (10μHz~1MHz)	Included on 1 channel only	Included on all 4 channels	Included on 1 channel only	Included on all 8 channels
Standard supply	Instrument host CS310X-1 set CS studio6 software, Power cable - 1 piece, Ethernet cable - 1 piece Electrode cable -8 pcs Dummy cell, Manual		Instrument host CS310X-1 set CS studio6 software, Power cable - 1 piece, Ethernet cable - 1 piece Electrode cable -16 pcs Dummy cell, Manual

Application
- Reaction mechanism of Electrosynthesis, electrodeposition (electroplating), anodic oxidation.
- Electrochemical analysis, electro-catalysis, sensor;
- New energy materials, advanced functional materials, photoelectronic materials;
- Corrosion study of metals in water, concrete and soil etc;
- Fast evaluation of corrosion inhibitor, water stabilizer, coating and cathodic protection efficiency.
Specifications

Specifications
Number of channels with boards: 8	Channel insulation resistance: >100MΩ
Communication: Ethernet	Lower-pass filter: covering 8-decade
Potential control range: ±10V	Constant current control range: ±1A on each channel
Potential accuracy: 0.1%×full range±1mV	Current accuracy: 0.1%×full range
Potential resolution:10μV(>100Hz), 3μV(<10Hz)	Current resolution: 1pA
Potential rise time: <1μs(<10mA), <10μs(<2A)	Current range: 2nA ~1A, 10 ranges
Reference electrode input impedance: 1012Ω||20pF	Maximum current output: 1A
Compliance voltage: ±21V	Current increment during scan: 1mA @1A/ms
CV and LSV scan rate: 0.001mV~10000V/s	Potential increment during scan: 0.076mV@1V/ms
CA and CC pulse width: 0.0001~65000s	DPV and NPV pulse width: 0.0001~1000s
SWV frequency:0.001~100KHz	CV minimum potential increment: 0.075mV
AD data acquisition:16bit@1MHz,20bit @1kHz	IMP frequency:10μHz~1MHz
DA resolution:16bit, setup time:1μs	Current and potential range: automatic
Operating System requirements: Windows 10 /11	Weight: 18 Kg Dimensions: 40*40*14cm
Electrochemical Impedance Spectroscopy (EIS)
Signal generator
Frequency range: 10μHz~1MHz	AC signal amplitude: 1mV~2500mV
Frequency accuracy: 0.005%	Signal resolution: 0.1mV RMS
DDS output impedance: 50Ω	DC Bias: -10V~+10V
Wave distortion: <1%	Waveform: sine wave, triangular wave, square wave
Scan mode: Logarithmic/linear, increase/decrease
Signal analyzer
Maximum integral time:106 cycles or 105s	Measurement delay:0~105S
Minimum integral time:10ms or the longest time of a cycle
DC offset compensation
Potential compensation range: -10V~+10V	Current compensation range: -1A~+1A
Bandwidth adjustment: automatic and manual, 8-decade frequency range

Techniques Stable polarization Open Circuit Potential (OCP) Potentiostatic (I-T curve) Galvanostatic Potentiodynamic (Tafel plot) Galvanodynamic (DGP) Sweep-Step Functions (SSF) Transient Polarization Multi Potential Steps Multi Current Steps Potential Stair-Step (VSTEP) Galvanic Stair-Step (ISTEP) Chrono Method Chronopotentiometry (CP) Chronoamperametry (CA) Chronocaulometry (CC) Voltammetry Linear Sweep Voltammetry (LSV) Cylic Voltammetry (CV) Staircase Voltammetry (SCV) Square Wave Voltammetry (SWV) Differential Pulse Voltammetry (DPV) Normal Pulse Voltammetry (NPV)# Differential Normal Pulse Voltammetry (DNPV) AC Voltammetry (ACV) 2nd harmonic AC Voltammetry (SHACV) Fourier Transform AC Voltammetry (FTACV) Stripping Voltammetry Potentiostatic Stripping Linear Stripping Staircase Stripping Square Wave Stripping Differential Pulse Voltammetry Stripping Normal Pulse Voltammetry Stripping Differential Normal Pulse Voltammetry Stripping Amperometric Differential Pulse Amperometry (DPA) Double Differential Pulse Amperometry (DDPA) Triple Pulse Amperometry (TPA) Integrated Pulse Amperometric Detection (IPAD) Electrochemical Impedance Spectroscopy (EIS) Potentiostatic EIS (Nyquist, Bode) Galvanostatic EIS Potentiostatic EIS (Optional freq.) Galvanostatic EIS(Optional freq.) Mott-Schottky Potentiostatic EIS vs. Time (Single freq.) Galvanostatic EIS vs. Time (Single freq.) Corrosion Measurements Cyclic polarization curve (CPP) Linear polarization curve (LPR) Electrochemical Potentiokinetic Reactivation (EPR) Electrochemical Noise (EN) Zero resistance Ammeter (ZRA) Battery test Battery Charge and Discharge Galvanostatic Charge and Discharge (GCD) Potentiostatic Charging and Discharging(PCD) Potentiostatic Intermittent Titration Technique (PITT) Galvanostatic Intermittent Titration Technique (GITT) Extensions Data Logger Electrochemical Stripping/ Deposition Bulk Eletrolysis with Coulometry (BE) Rs Measurement
Simultaneous Measurements
You can choose a same electrochemical technique in every channel.
In each channel, the user can also choose different experiments.
Applications
Corrosion Electrochemistry
CS310X potentiostats/galvanostats support a variety of electrochemical techniques for corrosion, such as OCP recorder, potentiodynamic, EIS, cyclic polarization (CPP), LPR, hydrogen diffusion test, zero resistance ammeter (ZRA), electrochemical noise (ECN), etc.
Due to their high input impedance(1013Ω), they are especially suitable for EIS measurement of high-impedance systems like coating, concrete, and pure water.
High-impedance coating ageing test in salt spray tests Polarization curves of Ti-alloy& stainless steel in 3%NaCl solution ECN of low-carbon steel in 0.05mol/L Cl+0.1mol/L NaHCO3
Energy & Battery Testing
With versatile functions like linear sweep voltammetry (LSV), cyclic voltammetry (CV), galvanostatic charge/discharge (GCD), EIS(including potentiostatic and galvanostatic modes) with precise IR compensation, CS310X potentiostats are widely used in supercapacitor, Li-ion batteries, Li-S batteries, fuel cell, solar cell, solid-state batteries, flow batteries, and metal-air batteries, etc.
CV of PPy supercapacitor in 0.5 mol/L H2SO4 solution Electrocatalysis
Based on CV and LSV techniques, CS potentiostats can carry out long-term tests for ORR, OER, HER, and CO2 reduction, which is crucial for evaluating catalyst stability. In addition, the CS2350M bi-potentiostat and multichannel potentiostat specialize in Faradaic efficiency synchronous measurement.
CS310X potentiostats can measure the half-wave potential (ORR) and overpotential (HER, OER) of catalysts and calculate the power density and energy density of Redox peaks.
LSV curves of various catalysts in alkaline solution Analytical Electrochemistry
CS310X potentiostats include comprehensive voltammetric methods such as NPV, DPV, DNPV, SWV, and ACV, which make them ideal for quantitative analysis of trace elements via the intrinsic Voltammetry stripping techniques.
Stripping voltammetric curves in the solution dissolved with Pb2+, Cd2+, and Zn2+ ions
Technical Advantages
Switchable floating and earthing mode
All CS potentiostats/galvanostats can switch between the floating and earthing modes, and this strategy is beneficial for studying electrochemical systems in which the working electrodes are intrinsically ground, such as autoclaves, in-site concrete structures and multi-working electrodes requiring isolation, etc.
High-bandwidth EIS
with the help of built-in digital FRA and arbitrary signal generator, as well as the high input impedance (1013 W), the CS potentiostat is particularly suitable for EIS measurements of high-impedance systems (such as coating, membrane, concrete, etc.)
Based on the DC bias compensation technique, CS potentiostats can conduct EIS tests under different charge/discharge states of batteries, making them suitable for ultra-low resistance systems, such as power batteries, fuel cells, water-splitting equipment, etc.
Multiple electrode configurations
CS potentiostats support 2-, 3-, or 4-electrode configurations and can measure the galvanic current via built-in zero resistance ammeter circuits.
Independent multiple channels
For CS 310X multi-channel potentiostat, each channel is completely independent. It can be used for the electrochemistry measurements of multiple cells or multiple working electrodes in a cell.
User-defined sequence test
CS Studio 6.0 for Windows software supports user-defined sequence tests ("combination test"), which can facilitate automatic testing according to user-defined experiment sequences.
Power booster
Through CS2020B/CS2040B/CS2100B booster, the CS potentiostats can extend their output current up to ±20A/40A/100A, meeting the growing requirements in fuel cells, power batteries, electroplating and
Software development kit (SDK)
All CS potentiostats run under the control of CS Studio 6.0 for Windows (CSS 6.0). The CSS6.0 supports third-party languages, such as LabVIEW, C, C++, C#, VC, Python and others. Some API general interfaces and development examples can be supplied with the CS potentiostats. Through the SDK, customers can implement user-defined test methods.
Real-time data saving
CSS 6.0 saves experimental data timely, even if the experiment is accidentally interrupted by a power failure or computer shutdown. CSS 6.0 supports several data formats compatible with Originpro and Microsoft Excel.
Versatile data analysis functions
CSS 6.0 provides robust functions, including various electrochemical measurements and data analysis. It can complete Tafel plot fitting, CV derivation, integration and peak height analysis, EIS equivalent circuit fitting, etc.
3, 4 parameter polarisation curve fitting.
EIS fitting
Electrochemical noise spectrum analysis
Pseudo-capacitance calculation
GCD-specific capacitance, efficiency calculation
Mott-Schottky analysis
CV curve analysis
Activation/re-passivation curve analysis
