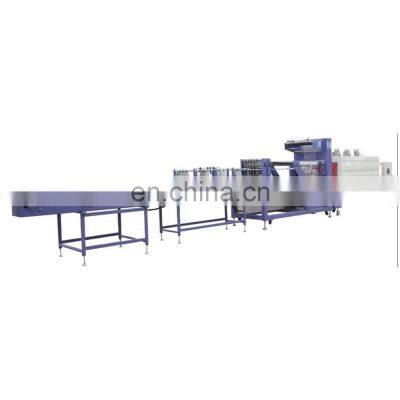

Linear type high speed automatic PE film heat shrink wrap packing machine
Product Description
Machine description and features:
Packing Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling
1.Feeding: The bottles enter into conveyor trough of sealing machine, on the conveyor trough there are adjustable guardrail. The feeding will stop when the bottle arrived to the set position.
2.Pushing bottles: After the bottles arrived to the pushing platform, the pushing cylinder will work at the same time to push the bottles over the sealing-cutting line.
3.Cover film and sealing: After bottles pushed over the sealing-cutting line, the upper pressing device will press the bottles, this process will protect the bottles falling. After pushing cylinder return, the film sealing cylinder and film cutting cylinder will work together to finish the film covering and sealing process.
4.Shrink: After finishing the film covering the bottles will enter to the shrinking stove.
5.Cooling: After shrinking, the bottles will enter into the cooling device which installed on the end part, then enter into the stock shelf and waiting for stacking.
Main machine:
Touch screen
Dividing bottle mechanism
Cutting part
Shrink tunnel
Main technical parameter:

Model	GD-350A
Thickness of shrink film	0.03-0.1mm(can be designed as your special requirements)
Film's max width	600mm
Shrinkable bake temperature	can be arbitrary adjustable within room temperature~200℃
Max packing speed	20-25packs/min (depend on 500ml)
Power supply	380V/220V 50Hz three-phase five-line
Power	about 28kw
Working air pressure	dry air more than 0.6MPa
Air consumption	25m³/h
Conveyor level height, the position of enter material and dimension	Design as the customer's request
Packaging type	Two sides open, two sides seal
Shrink film	PE
Suitable bottle type	Glass bottle, pop can, PET bottle and other materials which 200℃ temperature-resistant
Suitable bottle neck	Φ60-Φ90mm, height<330mm
Weight	2500kg
