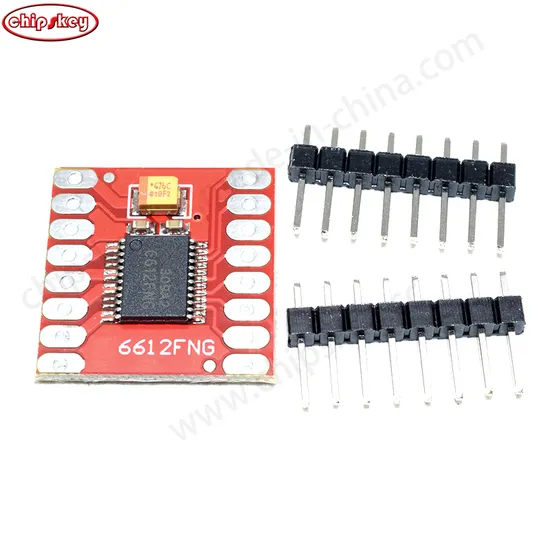

Tb6612fng Stepper Motor Driver

Tb6612fng Stepper Motor Driver

Negotiable 5 Pieces (MOQ)

Basic Info.

Model NO.
15F004
Excitation Mode
Magnetic-Electric
Function
/
Number of Poles
/
Operate Mode
/
Type
/
Certification
CCC
Brand
Ckmcu
Sku
15f004
Place of Origin
China
MOQ
5
Delivery Time
7days
Support Customization
Yes
Transport Package
ESD Bag
Specification
PCB Module
Trademark
CKMCU
Origin
China
HS Code
85423221
Production Capacity
50000PCS/Year

Product Description

Return policy details Buyers can return item(s) for a refund within 7 days from the day the item(s) were received, and the buyer is to afford the return shipping cost. The item(s) must be returned in the same exact condition as once it was delivered. Buyers may return the item(s) for a refund if they are not as described or with quality issues within 7 days from the day the item(s) were received.The buyer is required to afford the return shipping cost, based on the condition of the item(s) received. Description
SKU 15F004
Place of Origin China
Color Red
MOQ 5
Delivery time 7days
Support customization yes
Description:The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak).Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop.The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz..The STBY pin should be pulled high to take the motor out of standby mode.Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC.The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).Decoupling capacitors are included on both supply lines.All pins of the TB6612FNG are broken out to two 0.1 inch pitch headers.The pins are arranged such that input pins are on one side and output pins are on the other.Feature:Standby control to save powerCW/CCW/short brake/stop motor control modesBuilt-in thermal shutdown circuit and low voltage detecting circuitAll pins of the TB6612FNG broken out to 0.1 inch spaced pinsFiltering capacitors on both supply linesSpecification:
Dimension: 0.8 x 0.8 inch
Power supply voltage: VM=15V max, VCC=2.7-5.5V
Output current: Iout=1.2A (average) / 3.2A (peak)
FAQ 1.Are you manufacturer ?
Yes, We Are Manufacturer & Trading Company
2.How long is your delivery time?
Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.
3.Do you accept OEM design?
Yes, we do. We can design according to your requirement, MOQ usually 500-1000.
4.What payment terms you accept?
We accept ****** Trade Assuarce, T/T, PayPal, Western Union, Wechat, Alipay, in Cash (RMB or USD).
5.What Express Company You Use ?
We Can Ship the goods Via DHL, Fedex ,TNT, UPS ,Aramex ,EMS , China Post , By Sea And By Air. Company Profile Exhibition
