12js-130 Rock Picker Mounted Stone Provided Farm Machine Heavy Stone Picker

Product Description

Product Description
Stone Picker
The stones in the fields can greatly affect the planting revenue, and also significant damage to sowing machinery, field management, and harvesting machinery. For instance, if there are more stones than soil in the field, it is prone to cause water loss in the soil. Moreover, in some areas, drones are used foe sowing operations, but stones easily absorb heat, and if the seeds fall on the stones, they will lose their vitality, causing great inconvenience. The stone pickers can better solve the stone problem in the fields and truly turn the desert into arable land.
Automatic soil loading stone picker machine used for farmland with 12JS-130
The main function:
The following is an introduction to the basic working process of the multifunctional field stone picker produced by our company: The stone picker itself is powerless and requires a tractor for traction. Subsequently, the shovel tip enters the soil for deep digging, and the soil and stones are separated through a conveyor belt, finally entering the stone collection box. All these actions are carried out in a seamless manner. Once the stone collection box is full, the stones are poured into the shovel, and finally the shovel car transports the stones to the designated location.
Stone Picker-Series
The 12JS- series machines are heavy stone pickers.
The 11JS- series stone picker has the characteristics of being cheaper and more convenient than the 12JS- series stone picker. Because the 11JS- series stone picker is a small stone picker, its working efficiency is less than that of the 12JS- series stone picker, and the capacity of its stone collection box is also smaller than that of the 12JS- series stone picker.
Because the length of the transport belt of the 11JS-series small stone picker is short, the amount of soil into the collection box of the 11JS-series stone picker is more than that of the 12JS-series stone picker.

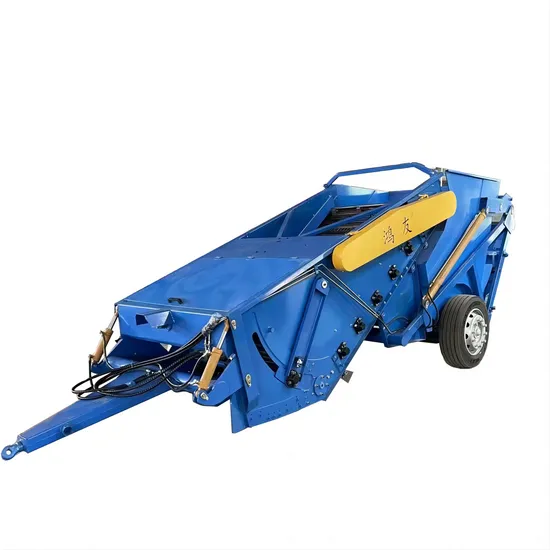

Detailed Photos
A stone picking machine is a self-propelled or tractor-mounted device that systematically collects stones and other unwanted objects from the soil's surface. It typically consists of a series of rotating screens, belts, paddles, or rollers that separate stones and debris from the soil, depositing them into a collection hopper or container for removal. Stone picking machines vary in size, capacity, and design, catering to different farm sizes and requirements.
Product Parameters

Model	12JS- 130	Dimensions(mm)	7100*2500*2700
Operation width(mm)	1300	Operating depth(mm)	0-300
Pick Up The Smallest Size	28.8mm/41mm	Supporting power	130HP
Weight(kg)	4600	Conveyer Type	Grid Chain
Conveyor Chain Gap	50.8mm/63.5mm	Volume Of Collection Box	4.2m³
Heating Method	Hydraulic Cylinder	Unloading Height	2000mm
